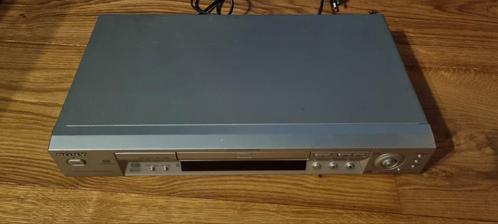

Sony dvd Super audio cd speler dvp ns705 nv

Sony dvd Super audio cd speler.

Model dvp ns 705 nv



Manufacturer: Sony

Model: DVP-NS 705 V

Type: DVD player

Years of manufacture: 2002 - 2003

Made in: Japan

Color: grey

Remote control: niet erbij

Power consumption: 16 W

Dimensions: 430 x 74 x 255 mm (WxHxD)

Weight: 2.6 kg

Original price approx.: 380 Euro


Connections

Number of inputs: -

Number of outputs: 7

Line out (Audio): 2 V / 10 kOhm, load impedance unknown

Line out (Video): 1,0 Vp-p / 75 Ohm

Line out (5.1CH): 2 V / 10 kOhm, load impedance unknown

S Video out: 4-pin, Mini-DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Cp-p (NTSC)/75 Ohm Digital out (Optical): 660 nm, -18 dBm

Digital out (Coaxial): Cinch socket - 2 V / 10 kOhm

Scart 1

Headphones: No


Technical data

Transducer:

Frequency response (DVD PCM 96 kHz): 2 - 44,000 Hz (±1 dB).

Frequency response (SACD): 2 - 100 kHz (50 kHz: -3 dB ±1 dB)

Frequency Response (CD): 2 - 20,000 Hz (±0.5 dB) Dynamic range: (DVD/SACD) 103 dB Dynamic range: (CD) 99 dB Signal to Noise Ratio (Line out Audio): 115 dB

Distortion factor: 0,003%

Channel separation: unknown

CD-Text: no

MP3 support: yes (32, 44.1 and 48 kHz)

Pitch control: no

Auto play: no

Shuffle: yes

Title programming: no

Repeat: yes

Plays CD-R/CD-RW/HDCD: yes/yes/no

Decoder:

Dolby ProLogic II: yes

Dolby Digital (AC-3): yes

Digital Theatre Systems (DTS): yes

Delay adjustment (Lip Sync): no



Reports

DVD-Audios are not playable with this device!

DVD videos with 24bit 96Khz 2.0 stereo (with or without video)
