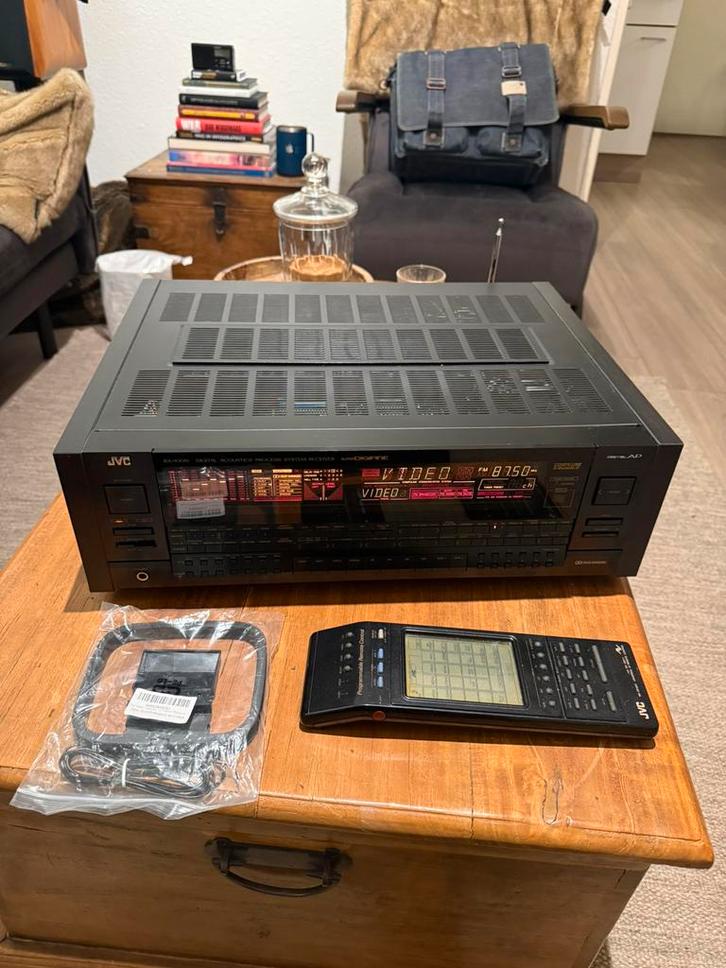

JVC RX-1001V Digital Acoustics Process System Reciever VBK with original wooden side panels and screws and RM-SR1001 Universal AV Remote Control

Your chance to own the King of the Recievers.
The 1001VBK. The same one as displayed in Posy - Extreme HiFi video!

100% functional! No defects. Cosmetically a nine out of ten. Extremely rare!

Comes with original, fully functional remote control, wooden side panels and screws and FM and AM antenna.

I urge you to collect this amplifier, but (worldwide) shipping is possible!

Please inquire me for shipping outside the Netherlands.

It’ll be wrapped in special foam.

Please be aware I assume no responsibility for possible shipping damages and costs.

Private sale, no warranty or returns.

Providing 120wpc in 2-channel operation or 110wpc front / 15wpc rear in 4-channel mode. Has inputs for MM turntable, CD, DAT, 2 tape decks and 2 VCR's including video switching. Tuner section has AM and FM reception.

Data
General

Manufacturer: JVC
Model: RX-1001 VBK
Type: Surround 2 / 4 channel receiver
Years of manufacture: 1988 - 1989
Made in: Japan
Color: Black
Remote control: JVC RM-SR-1001
Dimensions (WxHxD): 475 x 156 x 383 mm
Weight: 13.5 kg
Original price approx.: 2'200 DM

Connections:

Number of inputs:
Phono MM: 2.5 mV, 47 kOhm
Phono MC: 0,25 mV, 100 Ohm
Tape Play 1, 2: 230 mV, 47 kOhm
DAT Play: 230 mV, 47 kOhm
CD, Video: 230 mV, 47 kOhm
VCR Play 1, 2: 230 mV, 47 kOhm
Antenna: 75 Ohm, 300 Ohm
Number of outputs:
Tape Rec 1, 2: 230 mV
Rear Pre-Out: 230 mV
Video Monitor Out: A, B Headphones: 8 - 16 Ohm

3 speaker pairs (2x front, 1x rear)

Technical Data

Amplifier

Continuous power (at distortion)
8 Ohm 2-channel: 2x 120 W RMS, 20 - 20,000 Hz, < 0.007%.
8 Ohm Surround:
Front speaker: 2x 110 W RMS, 20 - 20,000 Hz, < 0.007%
Rear speakers: 2x 15 W RMS, 1 kHz, < 0.07%
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.1% at rated power
Attenuation factor: 45 at 8 Ohm
Frequency response:
Phono:
High Level: 5 - 70,000 Hz
Signal-to-noise ratio:
Phono: 80 dB
Tape 1: 100 dB
Tape 2: 85 dB High Level: 85 dB

Tone control equalizer:
Equalizer 7 center frequencies: 63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, 16 kHz.
Control range: ± 10 dB
Loudness: yes
High Filter: yes
Low Filter (Subsonic): yes
Muting: yes

Tuner

Reception: FM/MW
Frequencies:
FM: 88 - 108 MHz
MW: 535 - 1605 KHz
Input sensitivity:
FM: 1.5µV
MW: 30µV
Frequency response: 30-15,000 Hz (+ 0.5 dB, - 0.8 dB)
Distortion factor: 0.08% (mono), 0.08% (stereo) Signal-to-noise ratio: 84 dB (mono), 78 dB (stereo)

Channel separation: 50 dB at 1 kHz
Selectivity: 80 dB at 400 kHz
Co-wave selection: 1.5 dB
Spurious wave selection: 70 dB
Image frequency attenuation: 90 dB
IF attenuation: 100 dB
AM suppression: 55 dB

Special Features

Digital - / light bar display
3-fold overload protection
Tape Dubbing
Equalizer
Audio muting
FM Muting
Compu-Line connections
Integrated, digital acoustic processor
Video Inputs (NO Y/C!)
Programmable Remote Control
First receiver with Dolby Surround
Very clear despite a variety of options.
