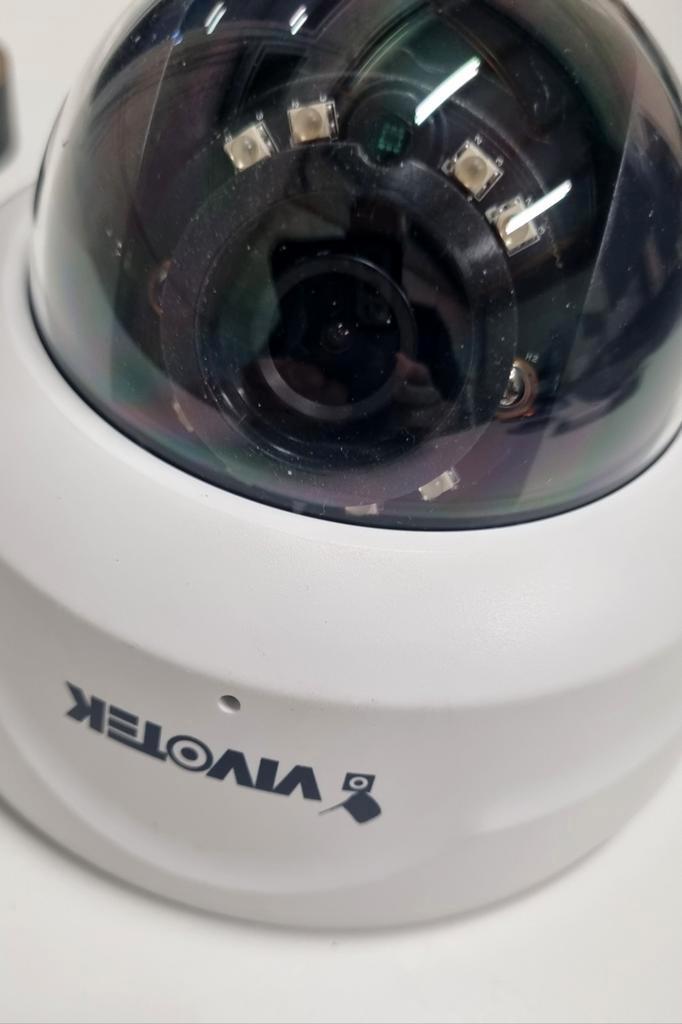

Vivotek Camera FD8164-F2

Make: VIVOTEK
Model code: FD8164-F2
Chip Inch Size: 1/3 inch
Colour Type: Colour / Monochrome
Resolution TVL: 2 MP

Additional info:
VIVOTEK FD8164-F2 is a 2MP fixed IP dome camera with 2.8mm focal length designed for indoor security applications. In order to adapt to constantly changing lighting conditions, it features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. Featuring 3D Noise Reduction Technology, it enables the camera to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. It also supports ONVIF Standard to simplify integration and enhance interoperability.


Make
VIVOTEK
Manufacturer
VIVOTEK
Model code
FD8164-F2
Chip Inch Size
1/3 inch
Colour Type
Colour / Monochrome
Resolution TVL
2 MP
Megapixel
Yes
Dome Type
Static
Sensitivity lux
0.001
Digital (DSP)
Yes
Indoor/Outdoor
Indoor
Electrical Specifications
Voltage: PoE
Power Consumption: 5.1 W
Focal length
2.8 mm
Rotation Angleso
350
Compression
H.264, MJPEG
Back Light Compensation
Yes
White Balance
Yes
Electronic Shutter range
1/5 sec. ~ 1/32,000 sec
S/ N (Signal/ Noise) Ratio dB
> 53
Built-in IR LED
Yes
Zoom Ratio
x48
Network Properties
Interface: 10Base-T/100 BaseTX Ethernet (RJ-45)
Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Control: ePTZ
Image Frame Rate: 30 fps
Inclusive DVR/ Web Server: MicroSD/SDHC/SDXC
Physical Specifications
Dimensions mm: 127 x 91
Weight g: 440
Environmental Specifications
Operating Temp oC: 0 ~ 50 C (32 ~ 122 F)
System Requirements
Operating System: Microsoft Windows 7/Vista/XP/2000
Web Browser: Mozilla Firefox 7~10 (streaming only), Internet Explorer 7/8/9
Additional info
VIVOTEK FD8164-F2 is a 2MP fixed IP dome camera with 2.8mm focal length designed for indoor security applications. In order to adapt to constantly changing lighting conditions, it features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. Featuring 3D Noise Reduction Technology, it enables the camera to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise. It also supports ONVIF Standard to simplify integration and enhance interoperability.
