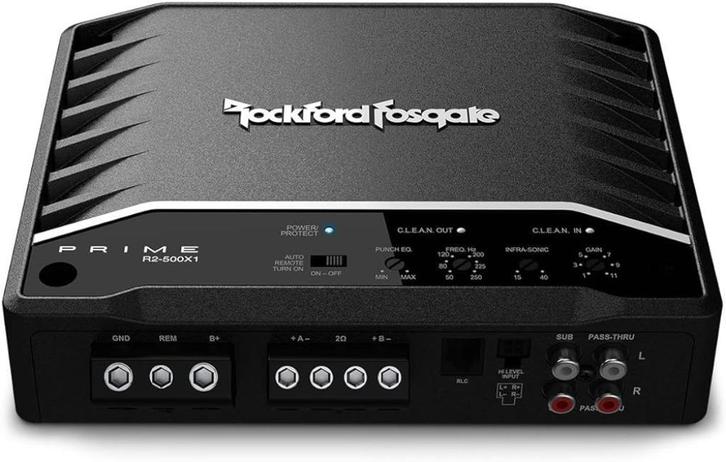

Rockford Fosgate R2-500X1 Monoblok versterker

Gratis verzending vanaf 99 euro naar Nederland, Duitsland & België! ( Wij verzenden wereldwijd / we ship worldwide )

Langskomen? Dit is mogelijk op afspraak



  • Balanced differential inputs with RCA pass-through outputs.
  • High level input suitable
  • Variable input gain adjustment
  • Auto-sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Features C.L.E.A.N. adjustment
  • RLC level remote control included
  • Variable infrasonic filter
  • Top mounted control panel
  • Continuously variable on-board punch EQ
  • Short circuit and overcurrent protection
  • CEA-2006 compliant & CE compliant
  • Cast aluminum heat sink
  • Class D topology
  • Fully adjustable 12 dB/octave high-pass and low-pass Butterworth crossovers

Specifications:


  • 1-channel amplifier
  • RMS continuous power:
  • 300 Watt x 1 @ 4Ω
  • 500 Watt x 1 @ 2Ω


  • Dynamic power
  • 350 Watt x 1 @ 4Ω
  • 590 Watt x 1 @ 2Ω


  • Frequency response: 20 Hz - 250 Hz
  • Input sensitivity: Low level: 150 mV - 4 V
  • High level: 450 mV - 12 V
  • Circuit topology class : Class-D
  • Signal input : Low level: 2 RCA
  • High level : 4 pin Molex
  • Signal output : Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level
  • input)
  • Tone control: 0 to +18 dB at 45 Hz
  • Lowpass: 50 Hz - 250 Hz @ 12dB/octave Butterworth
  • Infrasonic: 15 Hz - 40 Hz @ 12dB/octave Butterworth
  • Operating voltage 9 - 16 VDC
  • Recommended fuse 80 A
  • Average current consumption (13.8 V music)
  • Max. Current consumption (13.8 V sine wave)52 A
  • Dimensions:4.9 cm x 17.3 cm x 21.5 cm
...
...
...
...
...
...
...
...
...
...
...
...
