Kenmerken
Conditie
Nieuw
Beschrijving

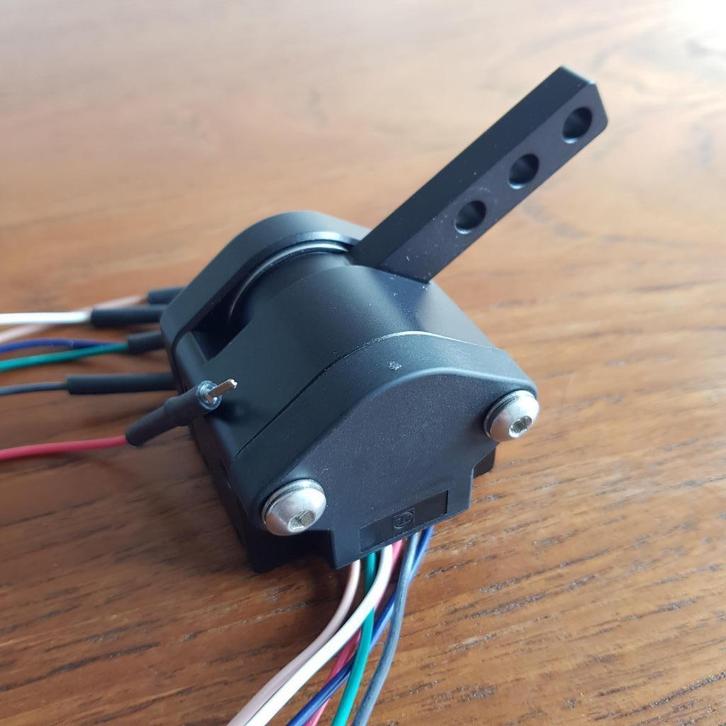

Fellten (voorheen Zero EV) throttle, nieuw en ongebruikt. Nieuwprijs was meer dan 200 euro, dus graag bieden naar waarde.
P67-rated dual hall effect sensor for rugged environments
CNC-machined aluminium construction with black anodized finish
Dual-channel configuration (compatible with single-signal systems)
Internal return spring and mechanical end stops
Ideal for EVs, marine applications, pedal boxes, kit cars, and retrofits
Comes preassembled with a lever — plug and play for custom builds
Electrical Specifications
Input Voltage: 5.0 VDC ±10%
Output Voltage: 10% to 90% of input (analogue, proportional to lever angle)
Input Current: 14 mA (typ.), 16 mA (max.)
Output Current: ±30 mA
Accuracy & Linearity: ±3.5%
Maximum Overvoltage: 16 VDC Absolute Max
Output Type: Analog (dual independent channels)
Environmental Specifications
Vibration: 15g sinusoidal, 9.26g RMS axial; 40 Hz – 2 kHz (all 3 axes)
Operating Temperature: -40 °C to 125 °C (-40 °F to 257 °F)
Storage Temperature: -40 °C to 150 °C (-40 °F to 302 °F)
Ingress Protection: IP67 (dust- and water-sealed)
P67-rated dual hall effect sensor for rugged environments
CNC-machined aluminium construction with black anodized finish
Dual-channel configuration (compatible with single-signal systems)
Internal return spring and mechanical end stops
Ideal for EVs, marine applications, pedal boxes, kit cars, and retrofits
Comes preassembled with a lever — plug and play for custom builds
Electrical Specifications
Input Voltage: 5.0 VDC ±10%
Output Voltage: 10% to 90% of input (analogue, proportional to lever angle)
Input Current: 14 mA (typ.), 16 mA (max.)
Output Current: ±30 mA
Accuracy & Linearity: ±3.5%
Maximum Overvoltage: 16 VDC Absolute Max
Output Type: Analog (dual independent channels)
Environmental Specifications
Vibration: 15g sinusoidal, 9.26g RMS axial; 40 Hz – 2 kHz (all 3 axes)
Operating Temperature: -40 °C to 125 °C (-40 °F to 257 °F)
Storage Temperature: -40 °C to 150 °C (-40 °F to 302 °F)
Ingress Protection: IP67 (dust- and water-sealed)
...
...
...
...
...
...
...
...
...
...
...
...
