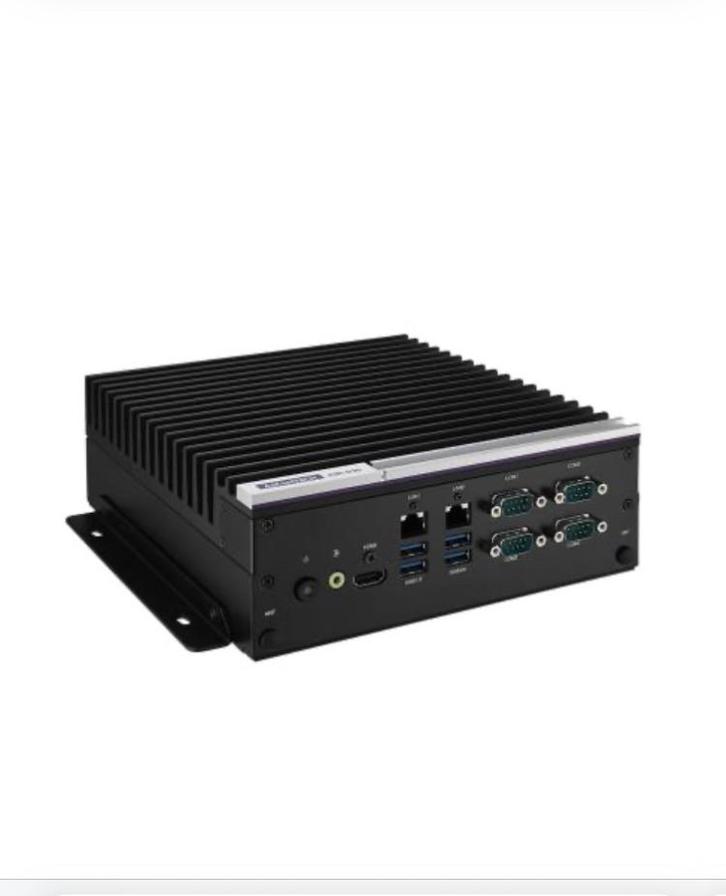

AI Inference System Based on NVIDIA® Jetson AGX Orin™
Compact and high performance AI box
NVIDIA® Jetson AGX Orin™ 64GB and 32GB Modules
9~36V wide power and -10~60 °C wide temp. supported
Multiple IO ports: LAN, DIO, COM, CANBus, USB 3.2 and USB type C
Versatile expansions with M.2 B key, M.2 E key, SD, PCIe x16(optional) support
Support Linux Ubuntu 20.04 LTS and JetPack SDK 5.1 and above
IEC 61000-6-4 Heavy Industry Certificate
Certified by AWS Greengrass


CPU
NVIDIA Arm® Cortex A78AE v8.2NVIDIA Arm® Cortex A78AE v8.2
Core Number
812
Memory
32 GB64 GB
Flash
64GB eMMC 64GB eMMC
GPU
1792 NVIDIA® CUDA® cores and 56 Tensor cores2048 NVIDIA® CUDA® cores and 64 Tensor cores
AI Performance Reference
Up to 200 TOPs (INT8)Up to 275 Sparse TOPS (INT8)
TDP
15 ~ 40W15 ~ 60W
Ethernet
Connector
RJ45 x 3RJ45 x 3
Controller
3 x Intel I225-LM3 x Intel I225-LM
Speed
Up to 2.5GbEUp to 2.5GbE
Display
HDMI
11
Max. Resolution
3840 x 2160 @ 60Hz3840 x 2160 @ 60Hz
I/O
USB
4 x USB 3.2 Type A, 1 x USB 3.2 Type C, 2 x internal USB 2.0 for security dongle4 x USB 3.2 Type A, 1 x USB 3.2 Type C, 2 x internal USB 2.0 for security dongle
COM Port
4 (4 x RS232/ 422/ 485)4 (4 x RS232/ 422/ 485)
Digital I/O
16 bit DIO16 bit DIO
Audio
1x Line-out1x Line-out
OTG USB
1 x Micro USB (for system recovery only)1 x Micro USB (for system recovery only)
CANBus
22
Internal Connectors
Camera Input
2 x 2-LANE MIPI-CS (internal)2 x 2-LANE MIPI-CS (internal)
Expansion
M.2
1 x B key (Type: 2280, 3042) + 1 x E Key (Type: 2230)1 x B key (Type: 2280, 3042) + 1 x E Key (Type: 2230)
SD Socket
1 SD card slot1 SD card slot
PCI Express x 16
OptionalOptional
Others
TPM
TPM 2.0 built inTPM 2.0 built in
Power
Input Voltage
9 ~ 36 VDC9 ~ 36 VDC
Power Type
AT/ ATXAT/ ATX
Mechanical
Weight
3.63 kg3.63 kg
Dimensions
200 x 220 x 74 mm200 x 220 x 74 mm
Environment
Operating Temperature
-10 ~ 60 °C with 0.7 m/s air flow-10 ~ 60 °C with 0.7 m/s air flow
Relative Humidity
95% @ 40° C (non-condensing)95% @ 40° C (non-condensing)
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Operating System
Linux
Ubuntu 20.04Ubuntu 20.04
SUSI
YesYes
Certification
Safety Certifications
UL, CBUL, CB
Certifications
EMC
CE, FCC Class B, CCC, BSMICE, FCC Class B, CCC, BSMI
