Kenmerken
Conditie
Nieuw
Beschrijving
Nieuw, aangeschaft maar toch niet gebruikt.

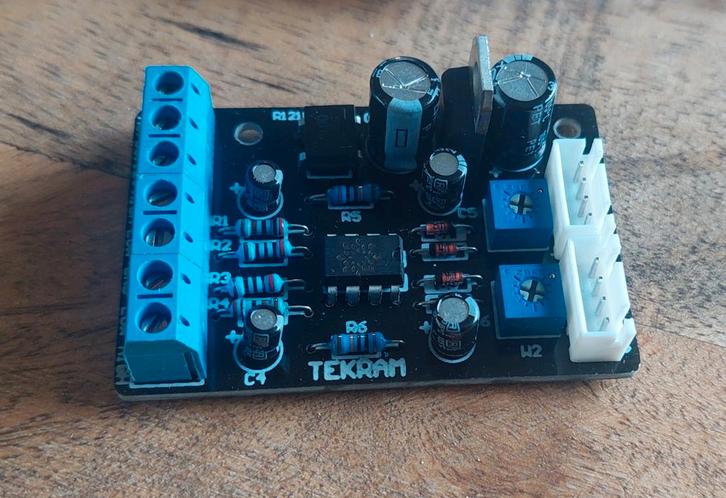

TEK Control Module for Stereo Meter
This control module is designed to control two meters (stereo).
It can be operated from 12 to 15 VAC / DC and can be operated at low (line level) or high level (HP terminal output).
It has a potentiometer per channel to fine-tune the meters
For a low level signal (line level (RCA)), wire the inputs Low, Gnd, Low, for a high level signal (HP terminals) inHigh, Gnd, High.
Features:
Rated Power: 3W
PCB Size: 60 x 39mm
Operating Voltage: AC 9-12V / DC 12-15V
Supplied with XHP to wire connection for two meters
Screw terminals + outputs on XHP connectors
TEK Control Module for Stereo Meter
This control module is designed to control two meters (stereo).
It can be operated from 12 to 15 VAC / DC and can be operated at low (line level) or high level (HP terminal output).
It has a potentiometer per channel to fine-tune the meters
For a low level signal (line level (RCA)), wire the inputs Low, Gnd, Low, for a high level signal (HP terminals) inHigh, Gnd, High.
Features:
Rated Power: 3W
PCB Size: 60 x 39mm
Operating Voltage: AC 9-12V / DC 12-15V
Supplied with XHP to wire connection for two meters
Screw terminals + outputs on XHP connectors
...
...
...
...
...
...
...
...
...
...
...
...
