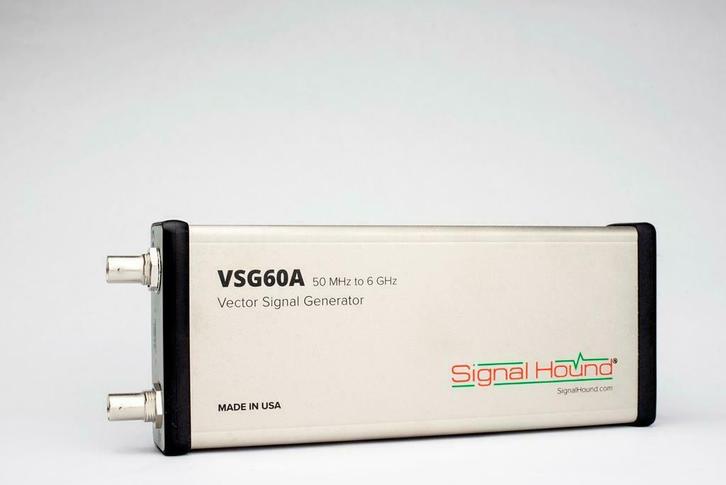

Signal Hound VSG60A Vector Signal Generator tot 6 GHz
Kenmerken
Beschrijving
De SignalHound VSG60A Vector Signal Generator tot 6 GHz: kan bijna iedere soort modulatie maken!
Prijs: 3.489 Euro ex.BTW, 4.222 Euro incl. BTW, gratis verzenden
Specs:
The VSG60A features a low phase noise, agile local oscillator with 200 µs switch time, enabling frequency hopping spread spectrum testing. A dual 14-bit DAC runs at 2x or 3x the I/Q symbol rate using digital oversampling to provide a flat, clean baseband; and a digitally adjustable internal VCTCXO ensures frequency errors are kept to a minimum over temperature, or an external 10 MHz input may be used for zero ppm frequency error. A trigger output is also available to synchronize your VSG60A with other test equipment.
FREQUENCY RANGE
50 MHz to 6 GHz
MODULATION BW
40 MHz
FREQUENCY SWITCH TIME
Queued frequency step time: 200 s (rounded up to next I/Q sample clock)
TIMEBASE
Internal 10 MHz VCTCXO with digital adjustment
Stability over temperature: ±0.28 ppm
Aging: < 1 ppm/year typical
AMPLITUDE
Range: +10 dBm to -55 dBm
Accuracy, CW: +/- 1.5 dB (0.5 dB typical)
Baseband flatness (20 MHz), ±0.25 dB typical
Baseband flatness (40 MHz), ±0.5 dB typical
PREPROGRAMMED MODULATION TYPES
CW AM, FM, Pulse, Multitone, Sweep, AWGN, FSK, GFSK, OOK, ASK, MSK, GMSK, BPSK, DBPSK, QPSK, DQPSK, Pi/4DQPSK, OQPSK, 8-PSK, 16-PSK, 16-QAM, 64-QAM, 256-QAM, 802.11a/b/n/ac, arbitrary
Behalve deze high-end VSG leveren wij ook andere, prijsgunstigere types, zoals de Signal Hound VSG25A voor 599 Euro ex.BTW. Kijk hiervoor naar onze ander Marktplaats advertenties.
