Kenmerken
Conditie
Gebruikt
Type
Speakerset
Wattage
150 watt of meer
Merk
Eigenschappen
Beschrijving

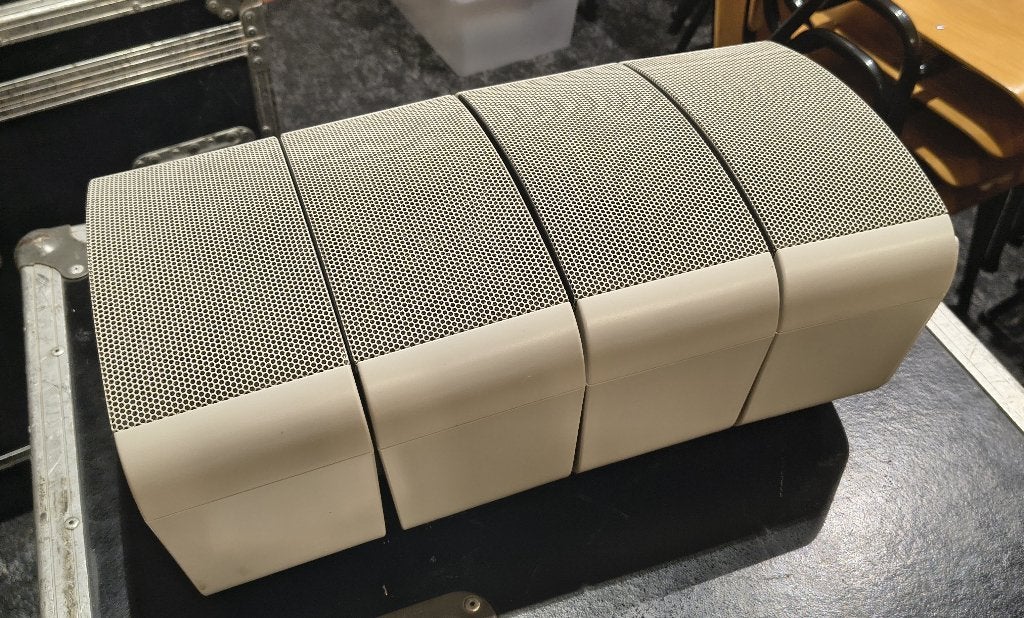

Professionele luidsprekers van Martin Audio, te gebruiken in bijvoorbeeld Gebedshuizen, Musea, Conferentiecentra, auditoria en collegezalen, Vervoersterminals, winkelcentra en sportlocaties,
Bars en restaurants
Model: Omniline (O-line)
Modules: 4
Kleur: Licht grijs
Inclusief ophangbeugel
Specificaties van 1 module:
TYPE Two-way micro-line array module
FREQUENCY RESPONSE (5) 85Hz-20kHz ± 3dB, -10dB @ 76Hz
DRIVER 2 x 3.5" (87mm)/1" (25mm) voice coil LF drivers
5 x 0.55" (14mm) soft dome tweeters
RATED POWER (2) 50W AES, 200W peak
SENSITIVITY (8) 84dB at LF rising to 92dB at HF
MAXIMUM SPL (9) 104dB continuous, 110dB peak
NOMINAL IMPEDANCE 16Ω
DISPERSION (-6dB) 100º horizontal, 5º vertical
CROSSOVER 2.5kHz passive
ENCLOSURE 4 litre ported cabinet, moulded in ABS
FINISH Light grey
PROTECTIVE GRILLE Light grey perforated steel
CONNECTORS 4 pole socket
PIN CONNECTIONS +/- in, +/- link out
FITTINGS Captive inter-connecting bracket assembly
6 x M8 fixings for wall and flying brackets
DIMENSIONS (W) 246mm x (H) 115mm x (D) 198mm
(W) 9.7ins x (H) 4.5ins x (D) 7.8ins
WEIGHT 3.6kg (7.9lbs)
Specificaties van 4 modules:
Sensitivity (6) (2.83V): 96dB
Impedance: 4Ω
Power handling(Watts, AES): 200 cont. 800 peak
Maximum SPL (cont./peak): 116dB/122dB
Max Coverage Distance: 8-12m
Array length: 0.47m
Array mass: 14.4kg
Bars en restaurants
Model: Omniline (O-line)
Modules: 4
Kleur: Licht grijs
Inclusief ophangbeugel
Specificaties van 1 module:
TYPE Two-way micro-line array module
FREQUENCY RESPONSE (5) 85Hz-20kHz ± 3dB, -10dB @ 76Hz
DRIVER 2 x 3.5" (87mm)/1" (25mm) voice coil LF drivers
5 x 0.55" (14mm) soft dome tweeters
RATED POWER (2) 50W AES, 200W peak
SENSITIVITY (8) 84dB at LF rising to 92dB at HF
MAXIMUM SPL (9) 104dB continuous, 110dB peak
NOMINAL IMPEDANCE 16Ω
DISPERSION (-6dB) 100º horizontal, 5º vertical
CROSSOVER 2.5kHz passive
ENCLOSURE 4 litre ported cabinet, moulded in ABS
FINISH Light grey
PROTECTIVE GRILLE Light grey perforated steel
CONNECTORS 4 pole socket
PIN CONNECTIONS +/- in, +/- link out
FITTINGS Captive inter-connecting bracket assembly
6 x M8 fixings for wall and flying brackets
DIMENSIONS (W) 246mm x (H) 115mm x (D) 198mm
(W) 9.7ins x (H) 4.5ins x (D) 7.8ins
WEIGHT 3.6kg (7.9lbs)
Specificaties van 4 modules:
Sensitivity (6) (2.83V): 96dB
Impedance: 4Ω
Power handling(Watts, AES): 200 cont. 800 peak
Maximum SPL (cont./peak): 116dB/122dB
Max Coverage Distance: 8-12m
Array length: 0.47m
Array mass: 14.4kg
...
...
...
...
...
...
...
...
...
...
...
...
