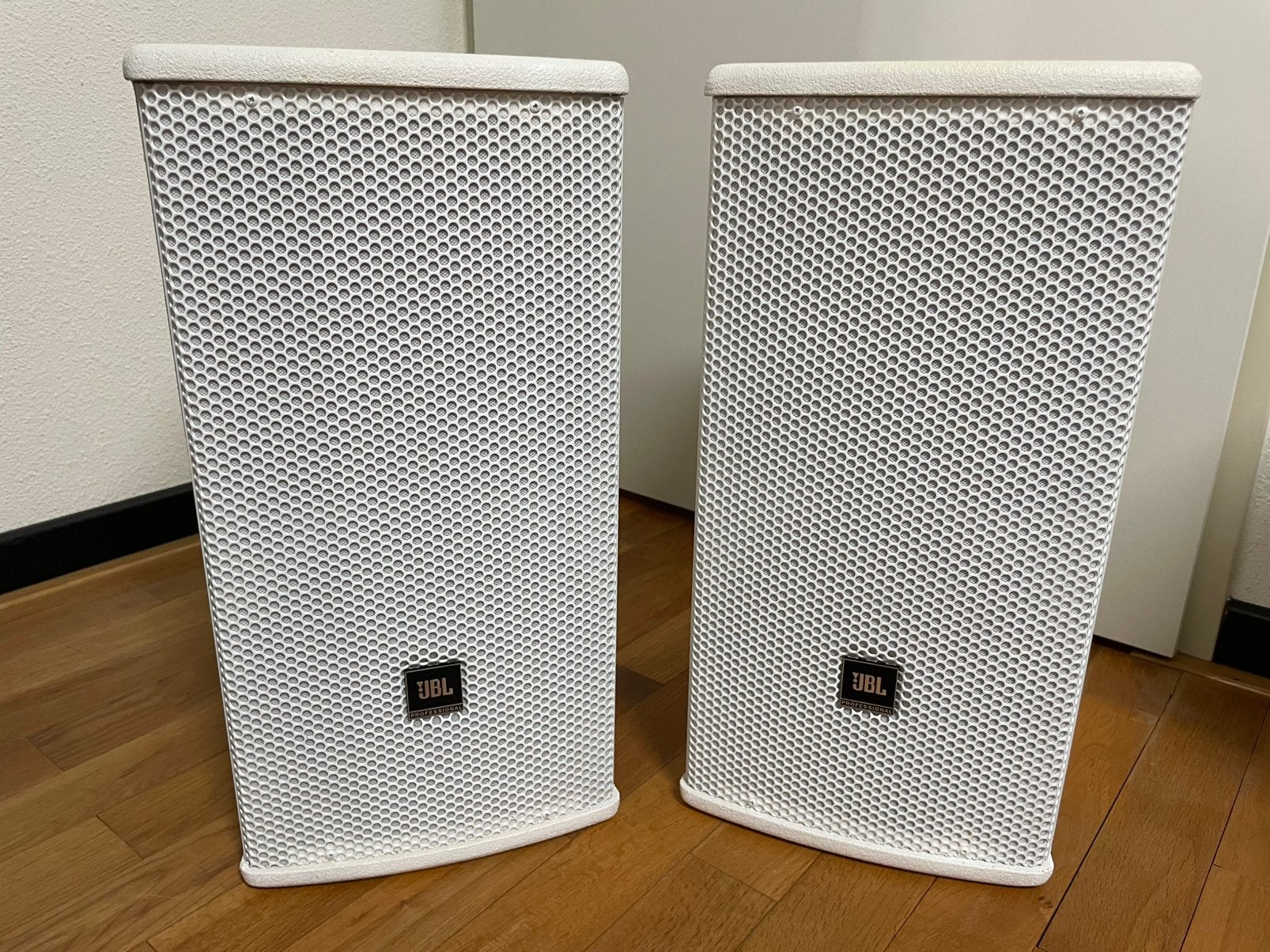

Mooie JBL Pro installatie speakers. Nieuwprijs €1400 per stuk. Mogen weg voor €200 per stuk. Alle speakers zijn getest. 5 stuks beschikbaar. Te horen bij het ophalen. Zie mijn andere advertenties voor passende muurbeugels.

Frequency Range (-10 dB): 52 Hz - 20 kHz
Frequency Response (+/-3 dB): 63 Hz - 19 kHz
Horizontal Coverage: 90°
Vertical Coverage: 50°
Directivity Factor (Q): 8 (avg. 500 Hz - 16 kHz)
Directivity Index (DI): 9 dB (avg. 500 Hz - 16 kHz)
System Sensitivity 1
: 93 SPL dB/1W/1m
Rated Maximum SPL (1m)2
: 117 dB
System Nominal Impedance: 8 Ohms
Long-Term System Power Rating3
:
(Continuous/Program/Peak): 250 W / 500 W / 1000 W
AES Standard Power Rating4
: 375 W
Crossover: 2.1 kHz
Transducers:
Low Frequency Driver: 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in)
edge wound voice coil
High Frequency Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5
in) voice coil
High-Frequency Waveguide: PT-D95HF-1 (Field Rotatable)
Physical:
Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood
plywood
Suspension Attachment: 6 x M8 points; 1 top, 3 bottom, 2 rear.
4 x M6 rear for OmniMount ® 30.0.
Finish: Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions5
: WRC & WRX available upon request
Grille: Powder coated 16 gauge perforated steel, acoustically
transparent foam backing (grille cloth backing on white units)
Input Connectors: Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant
covered barrier strip terminals. Barrier terminals accept up to
5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade
lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop
through).
Environmental Specifications: Mil-Std 810; IPx3 per IEC529. For higher environmental
ratings, use WRC or WRX.
Dimensions (H x W x D): 469.9 x 237.5 x 254.0 mm
(18.5 x 9.4 x 10.0 in)
Weight: 12.8 kg (28.2 lb)
Optional Accessories: MTU-18 U-Bracket
365469-001, M8 x 38 mm Tee Knob Thumbscrew Kit for use
with BMB-200k or K&M 195/8 stand mount accessory
