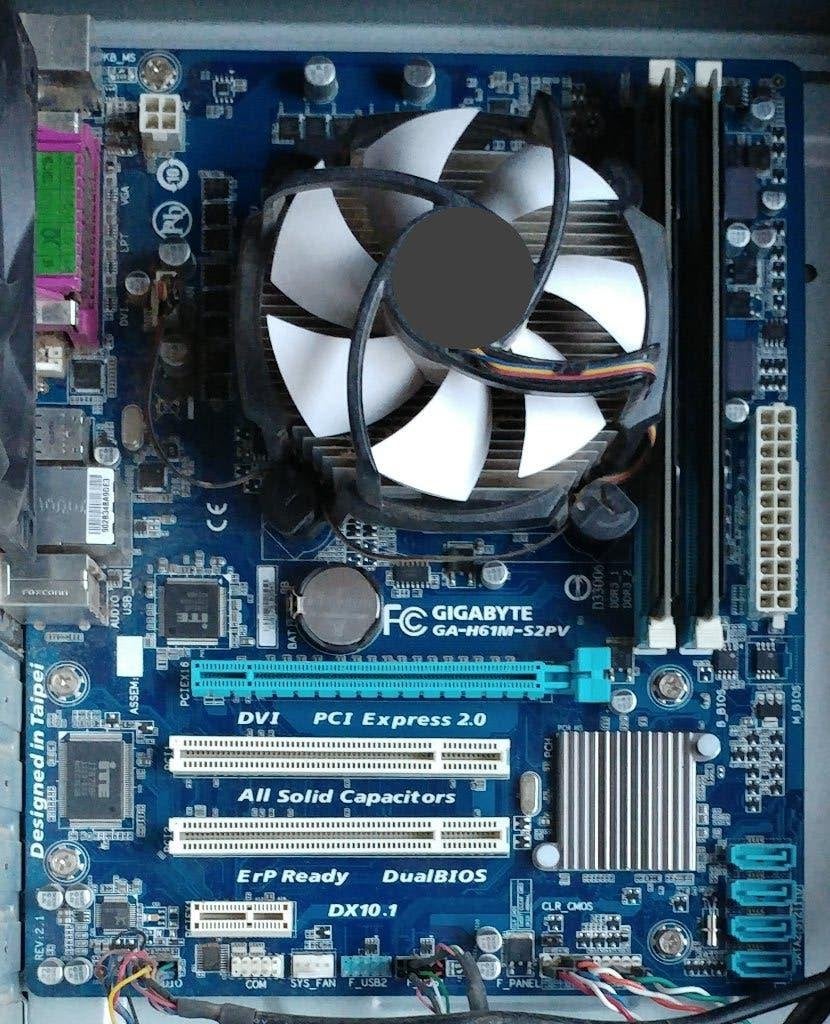

Moederbord Gigabyte GA-H61M-S2PV

Werkt prima, alleen netwerkpoort is defect en een paar seconden na uitschakelen, gaat het moederbord vanzelf weer aan. Waarschijnlijk een BIOS of hardwaredefect. Voor de rest draait Windows 10 en 11 met Rufus prima. Voor een klein hobby servertje is dit moederbord nog prima te gebruiken.

Inclusief CPU Intel Pentium G630, maar exclusief koeler voor € 15
Inclusief I/O shield.

Eventueel compleet met behuizing, voeding, geheugen en koeler voor meerprijs.

Specificaties moederbord:

• CPU
• Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
• L3 cache varies with CPU
• Chipset
• Intel® H61 Express Chipset
• Memory
• (Please refer "Memory Support List" for more information.)
• 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
• Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
• Dual channel memory architecture
• Support for DDR3 1333/1066/800 MHz memory modules
• Support for non-ECC memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
• Onboard Graphics
• Integrated Graphics Processor:
• 1 x D-Sub port
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200
• The DVI-D port does not support D-Sub connection by adapter.
• Audio
• Realtek ALC887 audio codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
• 1 x Realtek 8111F chip (10/100/1000 Mbit)
• Expansion Slots
• 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

• PCIE Gen.3 is dependent on CPU and expansion card compatibility.
• 1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

• 2 x PCI slots
• Storage Interface
• Chipset:
• 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
• USB
• Chipset:
• Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 4 x SATA 3Gb/s connectors
• 1 x CPU fan header
• 1 x system fan header
• 1 x front panel header
• 1 x front panel audio header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x Clear CMOS jumper
• Back Panel Connectors
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 1 x parallel port
• 1 x D-Sub port
• 1 x DVI-D port
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In/Line Out/Microphone)
• I/O Controller
• iTE IT8728 chip
• Form Factor
• Micro ATX Form Factor; 24.4cm x 20cm
