Condition: Refurbished

Juniper JNP-100G-4X25G-3M

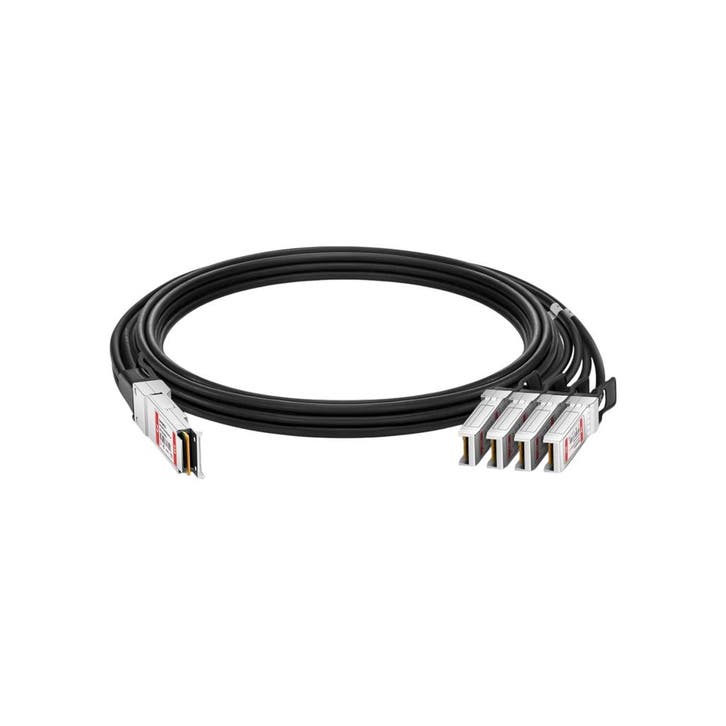

JNP-100G-4X25G-3M is a passive directattach copper (DAC) breakout cable. It connects a QSFP28 100Gbps port on one end to four SFP28 25Gbps ports on the other end. Cable length: 3 meters (9.84 feet) — suitable for shortrange connections within racks or between nearby racks in datacentres.

Features:

• 100Gbps 4 × 25Gbps breakout — The cable splits a single 100G QSFP28 port into four independent 25G SFP28 links (4 × 25.78125Gb/s).
• Passive directattach copper (DAC) — No active electronics, which means very low power consumption (nearzero additional power draw) and minimal latency.
• QSFP28 4×SFP28 connectors — One end uses a 38pin QSFP28 connector, the other side has four 20pin SFP28 connectors.
• SFF & MSA compliance — The cable is compliant with QSFP28 MSA and SFP28 MSA standards, and with electricalinterface specs like IEEE802.3bj (100GBASECR4) and IEEE802.3by (25GBASECR/25GAUI).

Whats in the Box?

• JNP-100G-4X25G-3M

Specifications:

General Information

• Model Number: JNP-100G-4X25G-3M
• Item Dimensions - H x W x D (IN): 2.36 x 11.8 x 12.2
• Item Weight (LBS): 0.55
• Color - Generic: Silver
