Kenmerken
Conditie
Zo goed als nieuw
Beschrijving

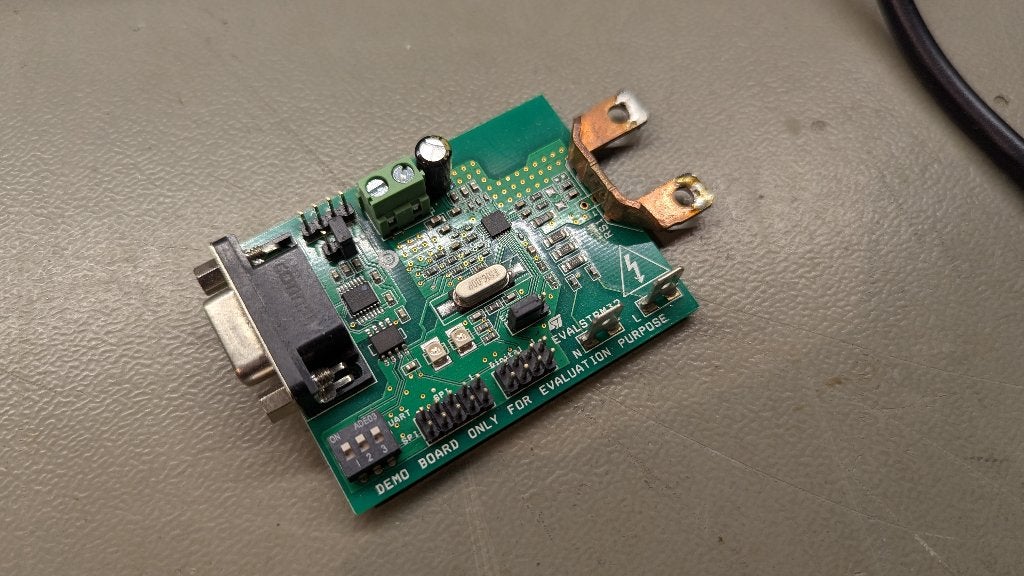

ST EVAL STPM32 evaluation board
EVALSTPM32
Single-phase energy metering evaluation board with shunt current sensor based on the STPM32.
Description
The STPM32 energy metering evaluation board is a class 0.2, single-phase meter with shunt current sensor for power line systems with Vnom= 140 to 300 V(RMS), Inom/ Imax= 5/100 A(RMS), flin= 50/60 Hz ± 10% and Tamb= -40 to +85 °C.
Measured active/reactive power can be output from two programmable LEDs on the board.
The board can be interfaced with a PC running evaluation software through an isolated RS232 port, or through the STEVAL-IPE023V1 USB isolated interface tool for configuration and data reading.
The board also has SPI/UART pins available to interface a microcontroller for application development.
EVALSTPM32
Single-phase energy metering evaluation board with shunt current sensor based on the STPM32.
Description
The STPM32 energy metering evaluation board is a class 0.2, single-phase meter with shunt current sensor for power line systems with Vnom= 140 to 300 V(RMS), Inom/ Imax= 5/100 A(RMS), flin= 50/60 Hz ± 10% and Tamb= -40 to +85 °C.
Measured active/reactive power can be output from two programmable LEDs on the board.
The board can be interfaced with a PC running evaluation software through an isolated RS232 port, or through the STEVAL-IPE023V1 USB isolated interface tool for configuration and data reading.
The board also has SPI/UART pins available to interface a microcontroller for application development.
...
...
...
...
...
...
...
...
...
...
...
...
Tilburg
8x bekeken
0x bewaard
Sinds 17 okt. '26
Advertentienummer: m2454683303
