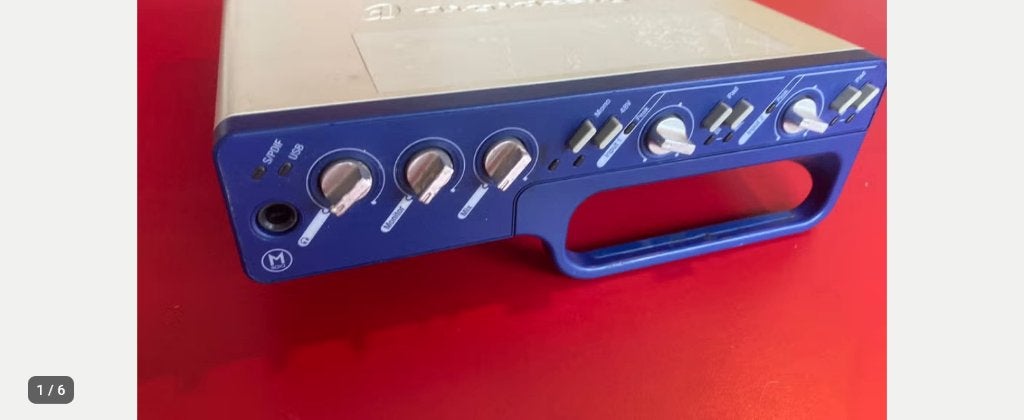

Digidesign Mbox audio interface incl USB kabel. ophalen in Den Bosch op afspraak. Opsturen ook mogelijk.

Hardware Features

Superior sonic performance
100% USB powered for maximum portability
2 analog inputs (XLR and ¼" jacks) & 2 analog outputs (¼" jacks)
2 channels of S/PDIF digital I/O (RCA)
4 simultaneous channels of input using both analog and digital I/O*
1 MIDI input & 1 MIDI output (16 channels in/16 channels out)
Zero-latency monitoring
48V phantom power for condenser microphones
Separate source selection and gain control per channel
Headphone output with dedicated volume control
Dedicated studio monitor volume control
True multi-client audio/MIDI drivers

Specifications

Analog Inputs — 2 * Separate source selection and gain control per channel * Mic: XLR with 48V phantom power * Mic preamp: >120 db EIN @ > 40 dB gain * Line: 1/4" TRS * DI: 1/4" * Maximum Input: 8.7 V RMS (balanced), or +21 dBu
Analog Line Outputs — 2 * Maximum Output: +4 dBV into 1 kohm * Unbalanced output connectors Headphone Output * Separate volume control—1/4" output * > 6 mW into 50 ohm
Digital I/O * S/PDIF (24-bit) * RCA jacks
Misc. * 24-bit clean to/from the computer * USB type B socket (v. 1.1); cable included (does not support passive USB hubs)
Dimensions — measured with Mbox 2 in horizontal (handle-down) configuration * Height, box: 4.9cm; with handle: 7.7cm; with handle cover: 5.6cm * Width: 22.4cm * Depth: 18.4cm (includes knobs) * Weight: 1.23 kg.
A/D * Sample Rate: 44.1, 48 kHz * Dynamic Range: 106 dB (A-weighted), 103 dB (unweighted) 1,2 * THD+N (line input): 0.00079% (-102 dB) @ 1 kHz 1,3 * THD+N @ 40 dB gain (mic input): 0.006% (-84 dB) @ 1 kHz 1 * Mic EIN (unweighted): -120 dB @ 40 dB gain, 150 ohm source * Frequency Response: +0/-0.5 dB, 20 Hz – 20 kHz3 * Maximum Input: +21 dBu * Input Impedance (pad off): Mic=3.5 kOhm; Line=10 kOhm; DI= >1 MOhm.
D/A * Sample Rate: 44.1, 48 kHz * Dynamic Range: 106 dB (A-weighted), 103 dB (unweighted) 1,4 * THD+N: 0.003% (-90.4 dB); -1 dBFS @ 1 kHz 1,3 * Frequency Response: +/-0.5 dB, 20 Hz – 20 kHz 3
Power Consumption * 360 mA from the USB power pin (1.8 W), phantom power off or phantom power on and unloaded. The power consumption will increase slightly depending on the device(s) plugged in, but it is self-limiting and will never be more than 500 mA (2.5 W). notes: 1 Measurement made using balanced connectors 2 ADC measured -60 dBFS method with minimum gain setting 3 Measured relative to level at 1 kHz 4 Measured with digital input at -60 dBFS @ 1 kHz
