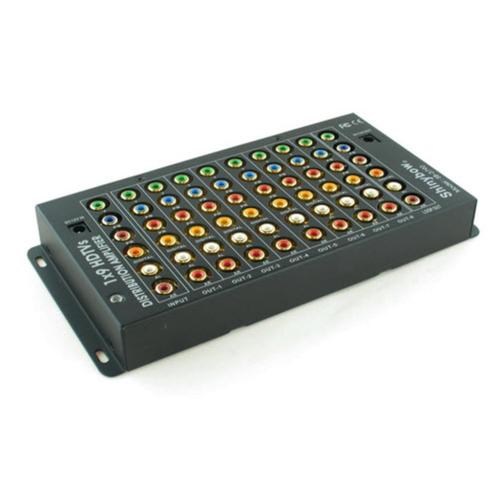

Shinybow SB-3790 19 Component Video Audio Distribution Ampl

The 1×9 Component Video/Audio Distribution Amplifier with Loop Out is designed to work as a splitter for Audio/Video applications. Capable of splitting a Component Video and Audio signal from one source to nine devices with compatible inputs. A built in amplifier will boost the signal to the needed level, to prevent signal loss and picture degradation. A maximum bandwidth of 700MHz will support a sharp and highly defined video in multiple resolutions of up to 1080p. The 1:9 Distribution Amplifier works with satellite and cable set-top boxes, DVD players, D-VHS players and all other equipment that is equipped with proper Audio/Video Connections.
Features:
• Sends Video and Audio to multiple displays at the same time
• Allows connection of 9 displays
• Supports 480i, 480p, 720p, 1080i and 1080p resolutions
• Installs in seconds
Specifications:
• Model Number: SB-3790
• Input/output: 1 in x 9 outputs Distribution Amplifier
• Type of Signals: Component Video/Digital Audio/Stereo Audio
• Input
o 1 x Video-: Component Video : YPbPr, YCbCr, RGB
o 1 x Audio-: 1. Digital Audio (COAX) or Composite Video (CV), Signal Bandwidth 110MHz. Liner-phase pass Band unity-gain. 1Vpp. Terminated to 75 ohms. 2. Stereo Audio – (Standard Left/HD, Right/VD pairs)
• Output
o 9 x Video-: Component Video : YPbPr, YCbCr. RGB
o 9 x Audio-: 1. Digital Audio (COAX) or Composite Video (CV), Signal Bandwidth 110MHz. Liner-phase pass Band unity-gain. 1Vpp. Terminated to 75 ohms. 2. Stereo Audio – (Standard Left/HD, Right/VD pairs)
• Video Bandwidth: >700MHz, G = + 2,
• Small Signal Bandwidth(-3db): 1Ghz, G=+1, 700MHz, G=+2,
• Setting time10ns to 0.1%, 2V Step, G=+2
• Low Distortion (SFDR): -66 dBc @ 20MHz, Second Harmonic -75 dBc @ 20MHz, Third Harmonic
• Third Order lntercept(3IP): 26dBm @ 70MHz, G = + 10
• Total connection unit number: Loop Output function extension about 10 units.
• Gain Flatness: 0.1dB to 75 Mhz
• Differential Gain Error: 0.01%, RL=150%
• Differential Phase Error: 0.01%, RL=150%
• In/Out Terminal: Color-coded RCA female connectors.
• Size (L,W,H): 9.05inx5.11 inxl in (230x130x25mm)
• Power Consumed: 450mA Maximum
• Power Source: DC 12 Volts, @500mA or up
Included:
• 1×9 Distribution Amplifier
• AC/DC Adapter: 12VDC, 500mA

6 stuks beschikbaar
