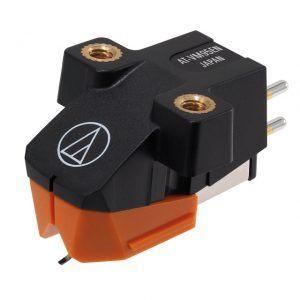

VM95 series Elliptical Nude stereo cartridge
The AT-VM95EN, features a Nude Elliptical Diamond. The construction of the stylus being a one piece diamond with a round shank inserted in the cantilever creates a lighter and more rigid transmission system than a diamond tip bonded on a round titanium shank such as in the AT-VM95E. Also the use of nude diamond implies a substantial difference in pricing, yet the quality of the reproduction will be immediately noticed, specifically in the fidelity of high frequencies and in the quality of the transient responses.

• Aluminium cantilever
• 3.5mV output voltage
• Compatible body with all VM95 Series stylus assemblies
• 20 to 23,000Hz frequency response

VM95 Series – Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

Elliptical Nude Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.No use of nuts
VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.
Model Number
AT-VM95EN
Cartridge EAN Code
4961310009
Type
VM Stereo Dual Magnet
Frequency Response
20 – 23,000Hz
Channel Separation
22 dB (1kHz)
Output Channel Balance
2.0 dB (1kHz)
Output Voltage
3.5mV (1kHz, 5cm/sec.)
Vertical Tracking Angle
23˚
Vertical Tracking Force Range
1.8 – 2.2g (2.0g standard)
Stylus Shape
Eliptical
Stylus Radius
0.3 x 0.7 mil
Stylus Construction
Nude Round Shank
Cantilever
Aluminium Pipe
Static Compliance
20 x 10-6 cm/dyne
Dynamic Compliance
7 x 10-6 cm/dyne (100Hz)
Wire Used For Coil
T.P. Copper
Coil Impedance
3.3kΩ
DC Resistance
485 Ω
Recommended Load Impedance
47.000Ω
Recommended Load Capacitance
100 – 200pF
Coil Inductance
550 mH (1kHz)
Cartridge Weight
6.1g
Mounting
2 x M2.6 Treaded inserts
Replacement Stylus
AT-VMN95EN
Replacement Stylus EAN Code
4961310146061
Accessories Included
2x 11mm installation screws; 2x 8mm installation screws; 2x washers; non-magnetic screwdriver
Dimentions
17.2 (H) x 18.9 (W) x 28.3 (L) mm
