Revival Audio ATALANTE 4Zie omschrijving
Nieuw binnen
Kenmerken
Type
Versterker
Handelsnaam fabrikant
Tsakiridis
Postadres fabrikant
104 04
E-mailadres fabrikant
info@tsakiridis-devices.com
Beschrijving
At Audio-Vault we are Official Dealers for Tsakiridis Devices.
Please, check out our website in the Profile page.

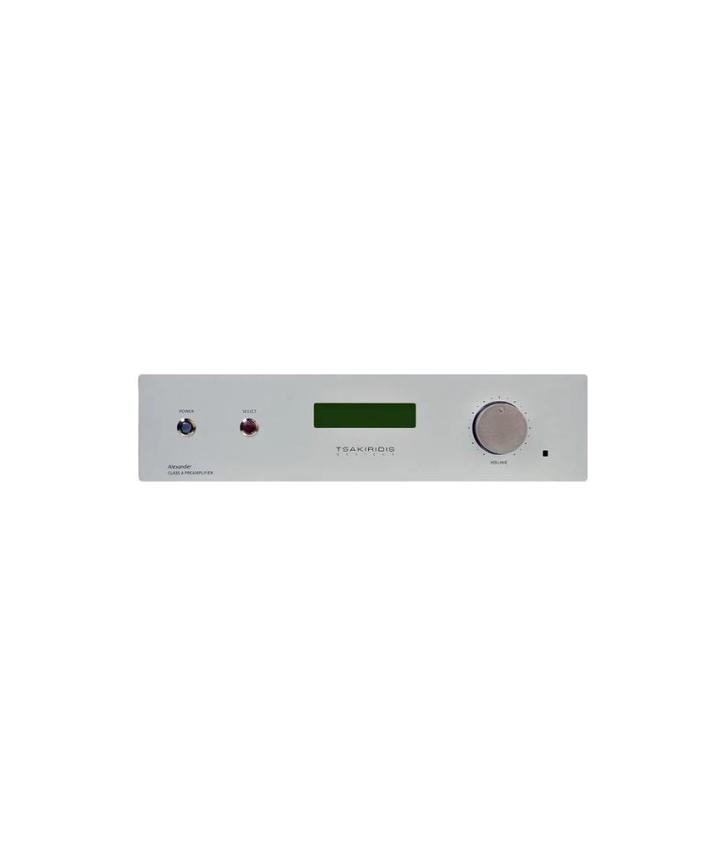

Alexander uses 8 signal tubes, 4 for the line stage and 4 for the phono stage.
It provides 5 line inputs in addition to the phono input, a tape output and 2 pre outputs. Alexander also has a thru input. The signal connected to this input appears to the output of the preamplifier when Alexander is OFF.
Gold plated RCA and XLR connectors are implemented for the signal inputs/outputs.
For the volume control the classic blue Alps is used.
An elegant remote control in aluminum case offers you control over all the functions of Alexander preamplifier. Volume control, input selection and mute.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the preamplifier. Alexander uses Mundorf Evo signal capacitor. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.
The handmade power transformers and choke are thoroughly tested for quality and reliability. The positioning of the transformers is such that minimizes the magnetic interference with the tube circuits. Furthermore the transformers have copper foil shielding.
FeaturesInputs: 5 line inputs (4 RCA 1 XLR) & 1 Through input
Phono input: MM cartridge
Outputs: 2 pre output (1 RCA, 1XLR) & 1 Tape output
Input selection: High grade signal relays
Input/Output connectors: RCA & XLR gold plated
Remote control: Yes
Volume control: Blue Alps
Informative Display: Yes
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundorf Evo capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformers: 2 Handmade 40W each & 1 choke
Phono stage tubes: 4x12AT7
Line stage tubes: 2x12AX7 & 2x12AT7
SpecificationsVoltage Gain: 14db
Input impedance: 47 kOhm
Output impedance: 200 Ohm
Maximum Output Voltage: 20V rms
Input Overload Voltage: 4V rms
Signal to Noise Ratio (SNR): 90db
Channel separation: 78db
Rise time: 3us @ 10kHz
Harmonic distortion: 1V @ 1kHz 0.40%
Frequency response: -3db 5Hz-100,000Hz
Power consumption: 55W
Weight: 12kgr
Dimensions (WxDxH): (43x35x12)cm
Please, check out our website in the Profile page.
Alexander uses 8 signal tubes, 4 for the line stage and 4 for the phono stage.
It provides 5 line inputs in addition to the phono input, a tape output and 2 pre outputs. Alexander also has a thru input. The signal connected to this input appears to the output of the preamplifier when Alexander is OFF.
Gold plated RCA and XLR connectors are implemented for the signal inputs/outputs.
For the volume control the classic blue Alps is used.
An elegant remote control in aluminum case offers you control over all the functions of Alexander preamplifier. Volume control, input selection and mute.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the preamplifier. Alexander uses Mundorf Evo signal capacitor. The meticulous PCB design ensures excellent behavior in SNR, distortion and channel separation.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.
The handmade power transformers and choke are thoroughly tested for quality and reliability. The positioning of the transformers is such that minimizes the magnetic interference with the tube circuits. Furthermore the transformers have copper foil shielding.
FeaturesInputs: 5 line inputs (4 RCA 1 XLR) & 1 Through input
Phono input: MM cartridge
Outputs: 2 pre output (1 RCA, 1XLR) & 1 Tape output
Input selection: High grade signal relays
Input/Output connectors: RCA & XLR gold plated
Remote control: Yes
Volume control: Blue Alps
Informative Display: Yes
Power supply capacitors: United Chemicon 105oC
Signal capacitors: Mundorf Evo capacitors
Power resistors: Carbon film 5% tolerance
Low power resistors: Metal film 1% tolerance
Power transformers: 2 Handmade 40W each & 1 choke
Phono stage tubes: 4x12AT7
Line stage tubes: 2x12AX7 & 2x12AT7
SpecificationsVoltage Gain: 14db
Input impedance: 47 kOhm
Output impedance: 200 Ohm
Maximum Output Voltage: 20V rms
Input Overload Voltage: 4V rms
Signal to Noise Ratio (SNR): 90db
Channel separation: 78db
Rise time: 3us @ 10kHz
Harmonic distortion: 1V @ 1kHz 0.40%
Frequency response: -3db 5Hz-100,000Hz
Power consumption: 55W
Weight: 12kgr
Dimensions (WxDxH): (43x35x12)cm
...
...
...
...
...
...
...
...
...
...
...
...
