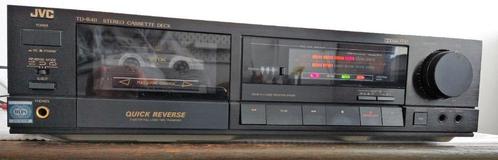

JVC TD-R411 HiFi Auto-reverse Cassettedeck

Prima werkend hifi cassettedeck van JVC.
Met 2 motoren en auto-reverse.
Het cassettedeck ziet er optisch nog goed uit.
De koppen zijn schoongemaakt en gedemagnetiseerd.
Werkend te zien.

General

• Manufacturer: JVC
• Model: TD-R 411 BK
• Type: Cassette Tape Deck
• Years of manufacture: 1988 - 1989
• Made in: Japan
• Color: Black
• Dimensions: 435 x 112 x 290 mm (WxHxD).
• Weight: 3.9 kg

Technical Data

• Audio heads: 2
• 1 x record/playback (SA-Head)
• 1x two-column ferrite head for erasing
• Motors: 2

• Fast rewind time: approx. 95 sec. at C-60
• Synchronous fluctuation: 0.2
• Tape types: Normal, Chrome, Metal
• Frequency response:
• Normal: 20 Hz - 16,000 Hz (DIN), 30 Hz - 16,000 Hz (± 3 dB)
• Chrome: 20 Hz - 16'000 Hz (DIN), 30 Hz - 15'000 Hz (± 3 dB)
• Metal: 20 Hz - 17'000 Hz (DIN), 30 Hz - 16'000 Hz (± 3 dB)

• Distortion factor: 0.5 % (THD), 1.0 % (Metal, 1 kHz, 0 VU)
• Signal-to-noise ratio: 58 dB
• Crosstalk attenuation: 60 dB
• Auto reverse: yes
• Dolby NR: B + C

Special Features

• Quick Reverse Mechanism
• Auto Tape Selection Mechanism
• COMPU LINK
