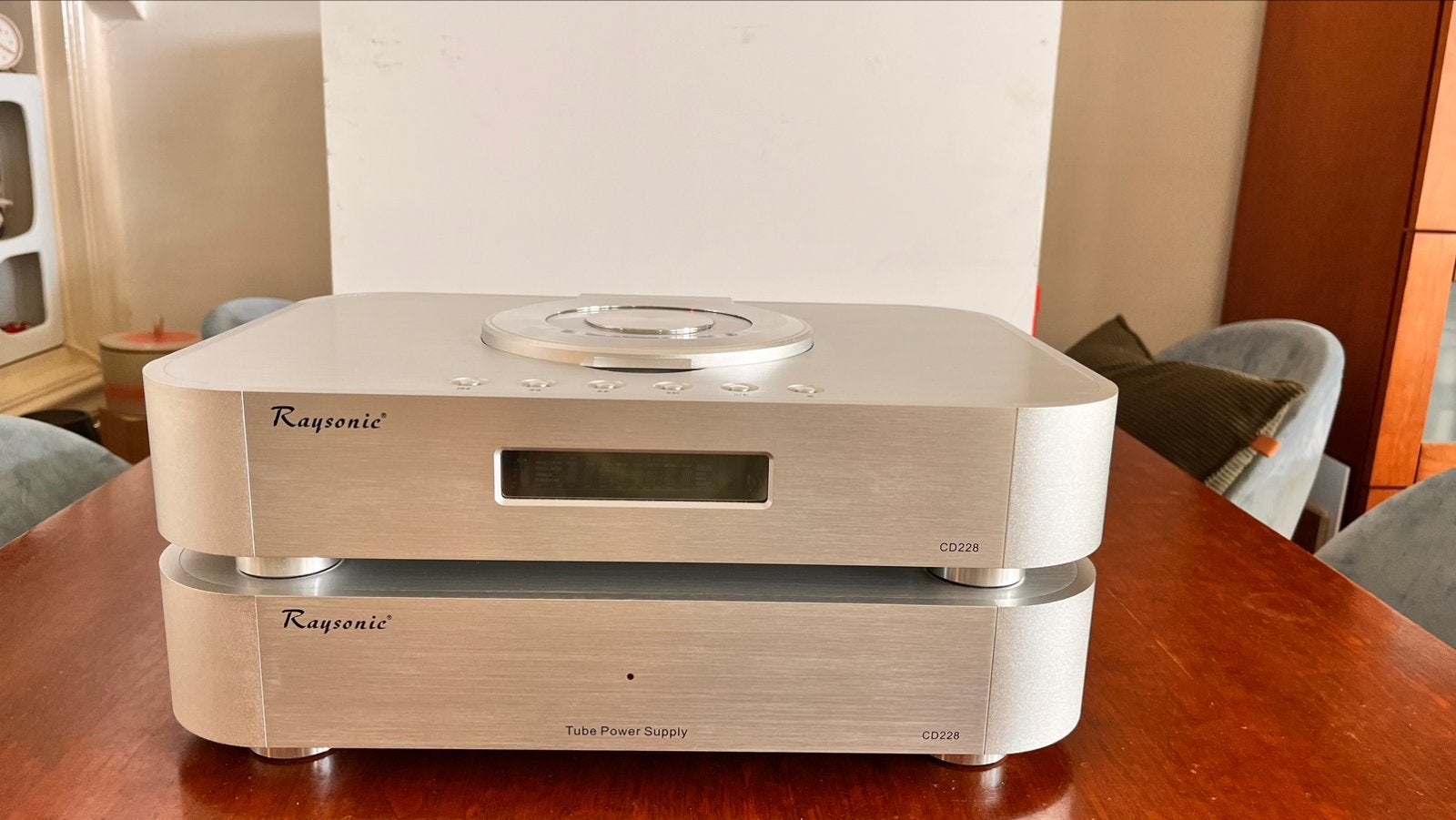

Raysonic CD 228 buizen cd-speler

In een zo goed als nieuwe staat

Hele mooie CD-speler met een losse voeding

Buizen uitgangen zowel gebalanceerd als single ended

buizen gelijkrichter in de voeding

Volume regeling in 99 stappen
met afstandsbediening

Display is in stappen te dimmen
Verlichting is uit te schakelen



Features:

Full-featured true balanced Top Loader CD-Player.
Real class-A triode vacuum-tube output stage for single-ended & balanced operation.
Very compact output buffer.
4 x 6922 triodes tubes-Russia.
Ceramic tube sockets.
Warm up function-extends tube life time.
2pcs burr brown pcm 1792.
Upsampling 24bit/192KHZ.
Philips CD transport mechanism.
Suspension system to isolate the CD-transport from vibration.
Mundorf/USA-auricap capacitors.
Solen-MKP capacitors.
Large noiseless C-core power transformer.
Mirrored display glass.
Display dimmer & mute function.
Beautifully crafted high grade 7mm aluminum-brushed and anodized chassis.
Metal remote volume control.
Top loader display LED ON/OFF function.
Chassis finish: black or silver.
Power Supply

External power supply - tube regulated & stabilized
2 large noiseless c-core power transformers
Choke regulated power supply
Power supply is separated from CD player
Specifications:

CD transport: Philips VAM 1202.
Conversation rate: 24bit/192KHz.
Output Level: 0 - 4.7V.
Frequency Response: 20Hz - 20KHz, ±0.2dB.
S/N Ratio: >100dB.
Distortion: ,0.003%.
Dynamic Range : 110dB.
Output impedance Single Ended RCA-110 ohms.
Output impedance Balanced XLR-330 ohms.
Digital output: 75 ohm.
Power Consumption: 38 Watts
Vacuum Tubes: Russia 6922 x 4.
Remote volume control: Yes.
CD player Dimensions: 43Lx30Wx9.6(cm)
Power supply Dimensions: 43Lx30Wx8.6(cm)
Voltage: 220-240VAC 50Hz
CD Player Weight: 7.27kg.
Power supply Weight: 9.8 kg
