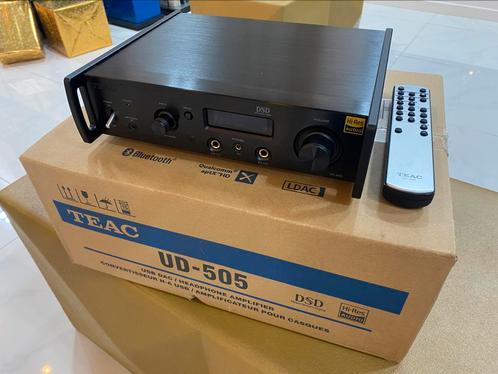

TEAC UD505 hoofdtelefoon versterker d/a converter

In nieuwstaat inclusief originele verpakking.

Like its predecessor models, the UD-501 and UD-503, it employs a dual monaural circuit design to process audio signals with even greater purity, with the latest VERITA AK4497 DAC chip used on each of the two channels.
This improves the S/N (signal to noise) ratio by processing each channel individually in monaural mode, as well as delivering DSD512 (22.5MHz) native and 768kHz/32-bit PCM playback capabilities.

The Analog section, which is one of the keys to sound quality,
includes four TEAC-HCLD buffer amp circuits process different drive modes, - fully-balanced drive for balanced output, and parallel drive mode for unbalance output, - to achieve enhanced acoustic expressive.

The headphone section is remarkable. A totally new 4.4mm headphone jack, called Pentaconn, is employed, allowing balanced and active ground connections within a single jack, while conventional 1/4" phone jacks are also provided.

In addition to a wide range of digital and Analog inputs, a Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX HD™ allows you to enjoy high-quality wireless audio streaming from your smartphone on this flagship USB DAC.
The UD-505 is a compact and high-spec USB DAC and headphone amplifier that supports today’s high sampling rate Hi-Res formats.

Features at a glance:

• Hi-Res audio playback supporting DSD512 (22.6MHz) and PCM 768kHz/32-bit PCM
• Dual monaural circuit design with a high-end AKM VERITA AK4497 DAC on each left and right channel
• 5 types of PCM digital filters and 2 types of DSD digital filters
• Up-conversion up to 24.5MHz DSD and 384kHz/32-bit PCM
• Dual on-board clocks for 44.1kHz and 48kHz frequencies, and 10MHz external clock input
• Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX™ HD
• TEAC-HCLD output buffer circuit and TEAC-QVCS volume control for high quality sound
• Dual toroidal-core power transformers
• Digital Isolator for separated digital and Analog sections
• 4.4mm 5-polar Pentaconn jack and dual 1/4” TRS jacks for balanced and active-ground drives * ”Pentaconn” is a registered trademark of NIPPON DICS Co., Ltd., complies with the RC-8141C JEITA standard
• TEAC’s patent-registered pin-point feet in three positions for the perfect installation * Japan patent No. 4075477 and No. 3778108
• Bulk Pet USB transferring technology with four transfer modes for various sound characters * ”Bulk Pet” is a registered trademark of Interface Corporation.
• USB audio port for Hi-Res audio input from Windows/Mac
• Coaxial and optical digital inputs on both front and back
• Convenient Analog LINE input to use the UD-505 as a pre-amplifier
• Analog outputs with balanced XLR and conventional unbalanced RCA outputs
• High-contrast full-graphic organic EL display with dimmer
• Full-metal body with an A4-sized footprint
• Free TEAC HR Audio Player for DSD512 and PCM32/768 playback
