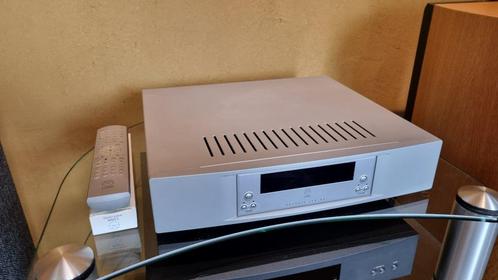

Linn Akurate Kontrol(/0) (surround) voorversterker processor pre-amp in zilvere uitvoering. Verkeert in nette staat en komt compleet met originele doos en remote.

Zowel voor puur stereo, als high-end hometheater systeem te gebruiken. Hij beschikt over een geweldige interne dac waarmee u al uw digitale bronnen naar Akurate niveau kunt tillen. Verder heeft hij een zeer mooie kwaliteit mm/mc phonostage aan boord voor uw platenspeler.

Wilt u Linn apparatuur inruilen, dan is dit natuurlijk altijd bespreekbaar.
Zie onze overige advertenties voor meer mooie (bijpassende) Linn apparatuur.

Bart Coenen Muziek
Linn occasion specialist en
professioneel pianist

Linn info:
KEY FEATURES
· Stereo and multi-channel pre-amplifier available as analogue only or with digital audio processing
· Digital audio module
· Can accommodate different speaker set-ups with supporting bass redirect, stereo sub algorithm and various analogue downmix algorithms
· Akurate Kontrol+DA offers processing of all major audio algorithms including Dolby Pro Logic II, Dolby Digital and DTS Surround
· Akurate Kontrol+DA features RS232 link for automatic pre-selection of the most appropriate decoding algorithm when used with a Linn UNIDISK player
· Linn designed user interface for fast, simple set-up and ease of control
· Built-in KNEKT Line Driver for multi-room audio distribution of up to 4 zones and built-in KNEKT Line Receiver to receive audio and control signals from main KNEKT system
· Standard Linn AV-size chassis

TECHNICAL SPECIFICATION
High performance stereo and multi-channel pre-amplifier
Product Type Stereo and multi-channel audio pre-amplifier
Dimensions (H) 80 mm x (W) 381 mm x (D) 355 mm (H) 3.1 inches x (W) 15 inches x (D) 14 inches Weight 3.7 kg / 8.2 lb Control Interfaces Remote control IR receiver RC5 input and output RCA connector KNEKT main system input KNEKT RCU socket 4 x KNEKT room outputs 2 x KNEKT IR flasher outputs 2 x independent RS232 ports 6 button keypad interface 128 x 32 front panel display Analogue Audio Inputs KNEKT main system input 6 pairs of RCA socket inputs (including 5.1 group and phono stage inputs) Digital Audio Inputs 3 x TOSLINK inputs 3 x SPDIF RCA socket inputs (supporting 44.1 kHz/48 kHz/88.2 kHz/ 96 kHz sample rates) Analogue Audio Outputs 7.1 RCA socket audio outputs 1 pair of RCA socket record outputs 4 x KNEKT room outputs (linked to record path) Digital Audio Outputs 1 x TOSLINK record output 1 x SPDIF RCA socket record output (supporting 44.1 kHz/48 kHz/ 88.2 kHz/96 kHz sample rates) Analogue Audio Decoding Stereo + Sub Bass Redirect, 3 Stereo Downmix, Phantom Downmix, LoRo 5.1 to Stereo Downmix Digital Audio Decoding Dolby Digital 5.1, Dolby Digital EX, Dolby Pro Logic II and Music mode, MPEG Surround, DTS Surround, DTS 96/24, DTS CD, DTS ES Matrix and Discrete, MPEG Surround, LtRt Digital Downmix, LIMBIK Party, AAC Stereo, AAC Surround, AAC Multilingual, adjustable lip sync delay Power Consumption Less than 30 W Mains Supply Fuse 1 amp anti-surge (not user serviceable) Mains Supply Range AC 100-120 V; AC 220-240 V @ 50 - 60 Hz Mains Supply Tolerance ± 10 % Phono stage (set to MM as default) MM Input Impedance 48 k, 68 pF MC Input Impedance 180 , 10 nF MM Input Voltage 70.0 mV peak @ 1 kHz MC (High Gain) 5.0 mV peak @ 1 kHz Input Voltage MC (Low Gain) 15 mV peak @ 1 kHz Input Voltage MM Input Gain +40 dB (x 100) @ 1 kHz MC (High Gain) +64 dB (x 1500) @ 1 kHz MC (Low Gain) +54 dB (x 500) @ 1 kHz MM Signal-to-noise Ratio Better than -104 dB MC Signal-to-noise Ratio Better than -90 dB Analogue Input Impedance 10 k nominal (unbalanced) Input Signal (max) + 10 dBv Output Impedance 330 nominal (unbalanced) Peak Output Signal + 10 dBv Volume Range - 80 dB to + 20 dB (0 - 100 scale range in 0.5 dB steps) Frequency Response 5 Hz to 100 kHz Finishes Silver, Black
