EVERSOLO H1
DAC Portable Headphone Amplifier ES9281AC Pro MQA 32bit 384kHz DSD256

EVERSOLO offers with the H1 a compact and powerful portable DAC and headphone amplifier combo.

With a USB-C input, it is an ideal companion for use with a current smartphone.

It incorporates a classic 3.5mm jack output compatible with most of your listening devices.

HI-Res Audio certification
The HI-Res Audio certification guarantees a listening quality superior to MP3 and CD, this is a guarantee of a level of quality of high fidelity digital audio reproduction superior to the current standard.

An ES9281AC Pro DAC chip for great performance
The digital/analog conversion stage uses an ES9281AC Pro DAC chip. This ensures good sound resolution and low distortion. It also allows low energy consumption, noise reduction and an SNR of up to 130dB. In addition, it supports high resolution audio streams, up to PCM 32bit 384kHz and DSD256.

Moreover, MQA (Master Quality Authenticated) technology allows the EVERSOLO H1 to reveal the resolution of original MQA files.

LDO integrated circuit and low power consumption
The LDO allows the amplification circuit to deliver high current and significantly reduce noise.

Power consumption control allows the EVERSOLO H1 to avoid overheating. When no headphones are inserted the decoding circuit is automatically disabled, so this also preserves the battery of your phone for example. Added to this is a smart POP crackling sound breaker to reduce "POP" crackling noise and prevent damage to your headphones or hearing.

Classic connectors (USB-C and 3.5mm Jack)
Thanks to its USB type C input and support for the UAC 2.0 protocol, the EVERSOLO H1 does not require any reader to be installed and allows Plug and Play on most of your devices (phones, tablets and computers).

The 3.5mm headphone jack is gold-plated, which ensures a reliable connection and strong resistance to oxidation.

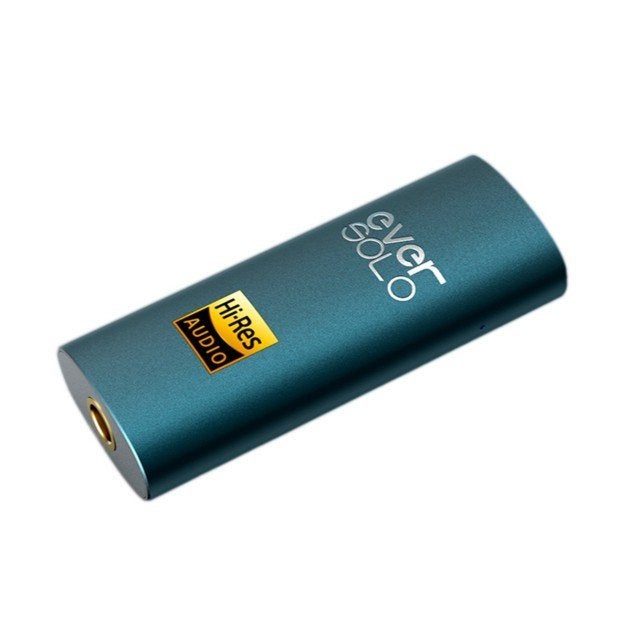

A compact and pleasant design
The compact, metallic and shiny case returns a feeling of softness to the touch and is easy to clean.

We will also note the presence of an intuitive multicolor RGB indicator that can detect audio file formats and display 4 colors accordingly:
Red = Device connectedGreen = DSDBlue = PCMPurple = MQA

SpEcifications
Product type
DAC and headphone amplifier
DAC Chip
ESS ES 9281AC Pro
Inputs
1x USB-C
Outputs
1x Jack 3.5mm
Output power
13mW @ 300Ω
62mW @ 16-32Ω
Supported sampling rates
PCM : 32bit 384kHz
DSD : DSD256
MQA
Frequency response
+0.3dB (20Hz-40kHz)
THD+N
-109dB
SNR
130dB (20Hz-20kHz)
GEnEral
Dimensions
50 x 20 x 11mm
Weight
9,8g
Color
Bleu
Package
1x EVERSOLO H1
1x Câble USB-C vers USB-C
1x Adaptateur USB-C vers USB-A
