I am selling this because i got other speakers

The condition is working okay.

Will be delivered with pickup from the buyer.

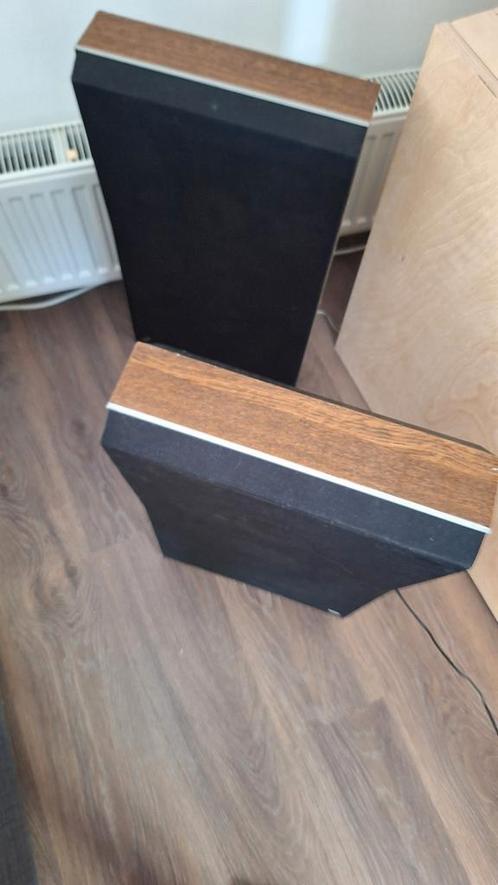

Slightly larger than the Beovox P30 (and based upon the Beovox P50), the Beovox Uni-Phase P45loudspeaker was too an interesting design in that it was manufactured specifically for mounting on a wall. At 65cm tall it looked relatively large from the front although its depth was only 9cm. It was excellently positioned in Bang & Olufsen’s speaker range to be used with the new, equally-slimline Beomaster 2200 and the Beocenter 4000. Hanging in either a horizontal or vertical position (although, because of its slight angled front it looked better in a vertical position), easy mounting was made possible with its clever rear design.

The unvented pressure chamber-type loudspeaker was based around the Beovox S45 and S45.2 although was much slimmer. Inside were three main drivers: two 125mm woofers together with a 25mm tweeter (and phase-link unit). Despite its relative slimness, bass reproduction was good.

The two bass units were 8-ohm units from Peerless, marked 820809, and the tweeter was a SEAS H086, 25mm, 4 ohm, the same type as used in the Beovox M70. The phase-link unit was also from SEAS, the 10F-M

Connection was made by cable to its rear-mounted DIN socket.

The range of ‘P’ loudspeakers were useful and very flexible in their use. When they were retired from the market there was a gap of a few years’ until production of panelled loudspeakers began once more with Beovox 3000and Beovox 5000.

Beovox P45 (Panel) Passive Loudspeakers technical specifications

Type: 6307 (1975 - May 1980)
Continuous load 45 W
Music load 75 W
Impedance: 4 - 8 ohms
Frequency response +4 -8 dB 45 - 20,000 Hz
Sensitivity: 4.2 W
Net volume:15 litre
Gross volume: 25 litre
Woofer: 2 x 12.5cm
Phase link unit: 9 cm
Tweeter: 2.5 cm
Dimensions W x H x D: 35 x 65 x 14cm
Weight: 8 kg
