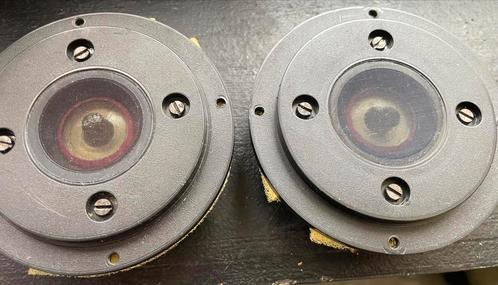

Philips tweeter set AD 0160 T8

AD 0160 T8
2422 257 33102
Philips

Werking getest in speaker kast. In goed werkende en uiterlijke staat


AI collected info;

🎵 Vintage Hi‑Fi Speakers
• DCM Time Window (circa late 1970s / early 1980s) – These 2-way systems feature two Philips dome tweeters (AD‑0140/T4 or T8) alongside paper‑cone woofers in a ported cabinet with a ~2 kHz crossover .
• Noted for their dispersion and “disappearing” quality in the room .
• Ohm Model I – A rebuild thread confirms that Ohm’s first bookshelf speaker used Philips AD 0160/T8‑style tweeters .

⸻

🧰 Philips Speaker Kits / Systems (1970s)

Philips’ 1970s Application Book lists several multi-way systems incorporating 2 × AD 0160/T8 tweeters, paired with mid-range and woofers like AD 5060 or AD 1055 — typical crossover points around 3 kHz, in small sealed or ported enclosures (~40 L) .

⸻

🔧 Used As Replacements / In Other Brands
• It’s sold as a direct replacement in Goodmans, Wharfedale, Bang & Olufsen, Infinity Studio Monitor models .
• MW Audio even markets parts specifically for Infinity Studio monitors using AD0160 variants .


Speaker System / Usage
Tweeter Used
Notes
DCM Time Window
AD‑0140/T8 (same family)
Dual tweeters
Ohm Model I
AD‑0160/T8 style
Confirmed fit
Philips vintage kits (System 16–22 etc., 1970s)
2 × AD‑0160/T8
Listed in Philips docs
Infinity Studio Monitor, Goodmans, B&O, Wharfedale
AD‑0160/T8 (as OEM drop‑in)
Sold as replacement

These tweeters are high sensitivity (~90–92 dB) polycarbonate domes, suitable for ~40 W handling, and frequently found in 2‑way crossovers at ~3 kHz .

⸻

🧐 If You’re Matching or Replacing
• Any re‑creation of DCM Time Windows or DIY speakers based on Philips kit specs should include two AD 0160/T8s per box.
• For Ohm Model I restorations, these are a direct style match.
• They’re also perfect retrofits in several classic British and European speakers (e.g., B&W Legacy, Wharfedale, Goodmans) that originally used similar 1″ domes.
