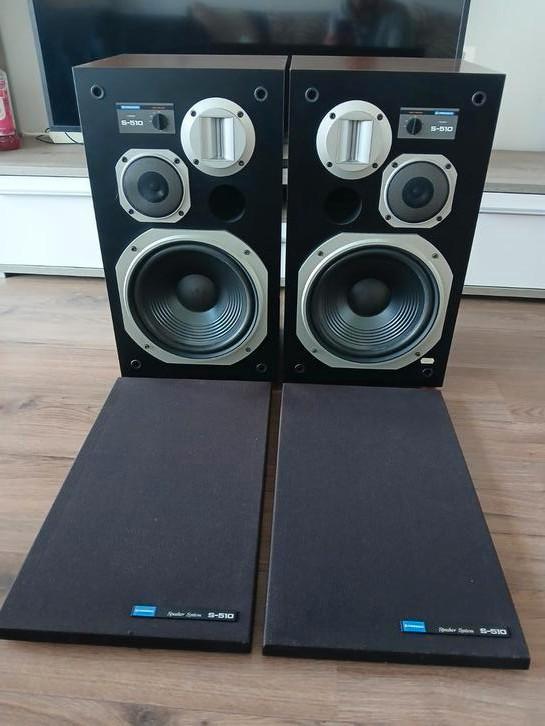

Pioneer S510
Hij werkt perfect
Hij heeft geen krassen
Description

It's not enough to describe Pioneer's newest line of speakers as fine technological achievements.

For every one of our speakers is also the result of hundreds of hours of listening comparison tests by Pioneer engineers and trained musicians. When their endorsements agreed with our computer and laser holograph tests, we knew that our technology was superior.

The S-510 is one of the new speaker systems that benefited from our advanced design and testing procedures.

We discovered that our Polymer Graphite cone material does sound better. Our tests told us that it has better transient response, better damping characteristics and holds up better to high input levels. Our ears agreed.

So we've used it in both the 25cm woofer of the S-510 and the 4.5cm midrange.

An aluminium ribbon tweeter handles all high frequencies up to an amazing 50,000Hz, your assurance that response will be accurate within the audible range.

So that high input levels of new digital sources may be handled, the ribbon has superb transient response and is attached at the ends rather than along the edges.

The moving mass is reduced by making the diaphragm itself act as the voice coil.

A high level control and a removable grille round out the S-510.

Specifications

Type: 3 way, 3 driver loudspeaker system

Frequency Response: 35Hz to 50kHz

Power Handling: 80W

Crossover Frequency: 2000, 13000Hz

Impedance: 6.3Ω

Sensitivity: 91dB

Bass: 1 x 250mm cone

Midrange: 1 x 45mm cone

Tweeter: 1 x ribbon

Enclosure: bass reflex

Dimensions: 325 x 570 x 313mm

Weight: 12kg

Year: 1983
