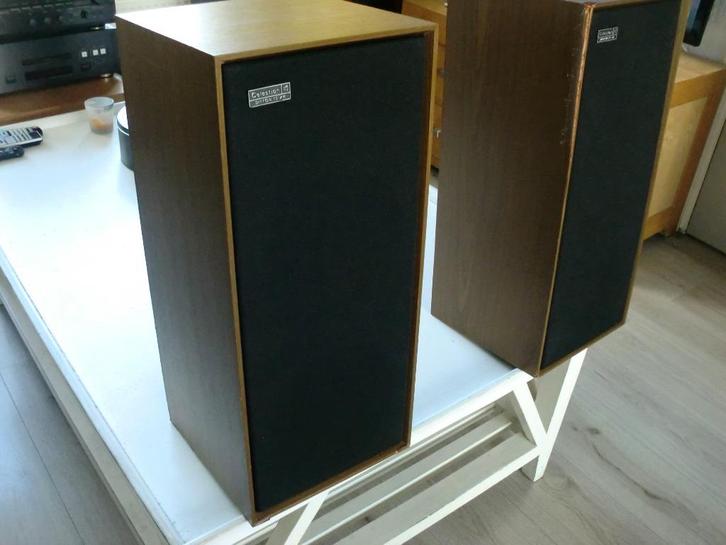

Celestion Ditton 15XR

SPEAKER INFO
Model History
Celestion Ditton 15 were launched in 1966 and were one of the smallest speakers in Celestion’s offer (the smallest speaker in the offer was Ditton 10, shortly followed by County, Ditton 15, Ditton 44 Monitor, Ditton 25 and Ditton 66 Monitor).
Design
The Ditton 15 is a two way construction with 1″ dome tweeter, 8″ bass driver and 8″ passive radiator, housed in a relatively rigid, braced enclosure. There is a first order filter feeding the bass driver and a second order filter feeding the tweeter, so a fairly simple crossover setup.
From what I gathered, back in the day, these speakers offered very good value for money and sold in thousands in the late 60s and early 70s. According to the Internet sources, Celestion Ditton 15 were eagerly sought after by the stereo conscious public, and became the biggest selling bookshelf loudspeaker of its time.


CELESTION DITTON 15 SPECS
Frequency Response:
30 – 15,000Hz
Sensitivity:
90dB (1W input, measured at 1m)
Impedance:
8Ω (4Ω min.)
Power Capacity:
30W (continuous program)
High Frequency Driver:
HF1300 25mm (1″) Dome
Low Frequency Driver:
200mm (8″) Paper Diaphragm and 200mm (8″) ABR (Passive Radiator)
Crossover Frequencies:
3,000Hz
Enclosure Type:
Closed
Enclosure Dimensions (HxWxD):
535x235x242mm (21×9.25×9.5″)
Weight:
8.5kg (each speaker)
Production Year:
1971
Price When Launched:
£60 for a pair
Equivalent Present Day Price:
£840 for a pair
Current UK Price:
£60 to £150 for a pair
