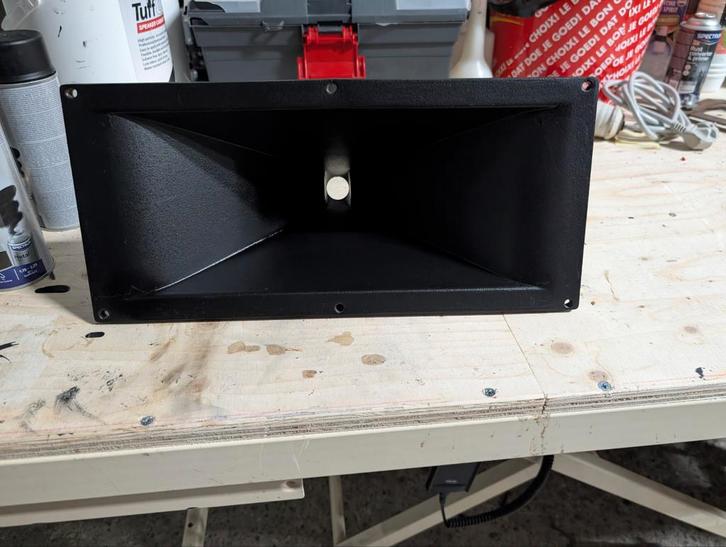

Beyma TD250 hoorns per 2 te koop. 25 euro per stuk
TECHNICAL SPECIFICATIONS DIMENSION DRAWINGS
Throat diameter 25 mm. 1 in.
Horizontal beamwidth 90º (+0º -40º)
(-6dB, 0.8 - 16 kHz)
Vertical beamwidth 40º (+35º -10º)
(-6dB, 2 - 16 kHz)
Directivity factor (Q) 13.2 (average 0.8 -16 kHz)
Directivity index (DI) 11.2 dB (+2.3 dB, -3.3 dB)
Cutoff frequency 800 Hz
Dimensions W x H x D: 420 x 195 x 170 mm.
Cutout dimensions W x H: 380 x 165 mm.
Net weight 0.8 kg.
Shipping weight 1.4 kg.
Designed for compression drivers with 1" mouth diameter
It provides uniform response, on and offaxis with a neutral and natural frequency reproduction
Coverage angles of 90º in the horizontal plane and 40º in the vertical plane
Straightforward mounting thanks to its plane mouth finish
This 1" throat entry horn has been designed to provide uniform on and off-axis frequency response, with uncoloured and natural sound reproduction. The constant directivity characteristics of this model ensure the ability to cover 90° wide horizontally and 40° wide vertically, at virtually any frequency within its operational range.
Since the response remains essentially constant, equalisation is easily simplifed. To ensure freedom of resonance, this flare is constructed of high-density rigid polyurethane foam, with flat front finish to facilitate flush mounting.
