Kenmerken
Beschrijving

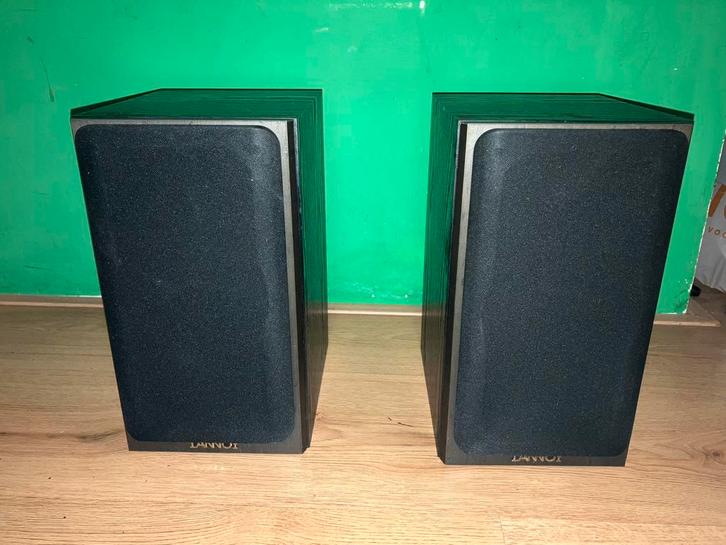

The Tannoy Mercury M1 speaker is a 2-way bass reflex system with a frequency response of 48Hz–20kHz and a 2.5kHz crossover frequency. It has a nominal impedance of 8 Ohms, a sensitivity of 87dB, and is recommended for amplifiers between 10–70 Watts. The dimensions are 170 x 300 x 210mm (W x H x D), and each speaker weighs 4.5kg.
Performance
Recommended amplifier: 10–70 Watts
Frequency response: 48Hz–20kHz (Some sources state 55Hz–20kHz ±3dB)
Crossover frequency: 2.5kHz
Sensitivity: 87dB
Nominal impedance: 8 Ohms
Continuous power handling: 50 Watts RMS
Peak power handling: 100 Watts
Drivers
High frequency: 25mm soft dome tweeter
Low frequency: 130mm paper bass cone driver
Physical characteristics
Enclosure type: 2-way bass reflex
Dimensions: 170 x 300 x 210mm (Width x Height x Depth)
Weight: 4.5kg
Other
Made in: UK
Years of production: 1997–1999
Performance
Recommended amplifier: 10–70 Watts
Frequency response: 48Hz–20kHz (Some sources state 55Hz–20kHz ±3dB)
Crossover frequency: 2.5kHz
Sensitivity: 87dB
Nominal impedance: 8 Ohms
Continuous power handling: 50 Watts RMS
Peak power handling: 100 Watts
Drivers
High frequency: 25mm soft dome tweeter
Low frequency: 130mm paper bass cone driver
Physical characteristics
Enclosure type: 2-way bass reflex
Dimensions: 170 x 300 x 210mm (Width x Height x Depth)
Weight: 4.5kg
Other
Made in: UK
Years of production: 1997–1999
...
...
...
...
...
...
...
...
...
...
...
...
