Wegens overstap naar ander systeem doe ik mijn Klipsch luidsprekers weg.

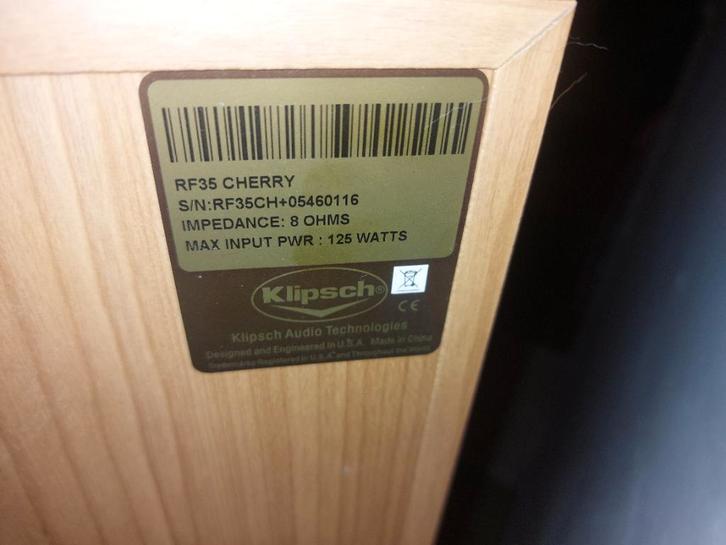

2 maal RF35
2 maal RF15
1 stuk Klipsch RVX42
In goede staat enkel bij 1 RF15 moet de tweeter vervangen worden...ca 50€.
Nieuwprijs 2005 - ca 3000€.
FREQUENCY RESPONSE:
37Hz-20kHz ±3dB
SENSITIVITY:
98dB @ 2.83 volts/1 meter
POWER HANDLING:
125 watts maximum continuous (500 watts peak)
NOMINAL IMPEDANCE:
8 ohms compatible
ENCLOSURE TYPE:
Bass reflex via rear-mounted port
DRIVE COMPONENTS:
Two-way system using one 1" (2.54cm) magnetically shielded, titanium dome compression driver tweeter with a integral 6" (15.2cm) square 90°x60° Tractrix® Horn and two 8" (20.32cm) magnetically shielded, aluminum cone woofers
TWEETER:
K-130-DN 1" (2.54cm) Titanium dome compression driver
HIGH FREQUENCY HORN:
6" square 90°x60° Tractrix® Horn
HF CROSSOVER:
2600Hz
WOOFER:
Two K-1122-OB 8" (20.32cm) Cerametallic® cone / cast polymer frame
INPUT CONNECTIONS:
Two sets of binding post speaker terminals (connected via brass strap jumpers)
DIMENSIONS:
40.9" (103.9cm) x 9.25" (23.5cm) x 14.8" (37.6cm)
WEIGHT:
54 lbs. (24.5kg)
ENCLOSURE MATERIAL:
Medium density fiberboard construction (MDF)
FINISHES:
Black Ash, Light Cherry wood-grain vinyl
FEATURES:
Internally wired with Bandwidth Balanced Monster Cable®
YEARS BUILT:
2003 -
The Klipsch RF-15 is a two-way, bass-reflex system via a rear-firing port.
Specification Detail
Bandwidth (Frequency Response)
46Hz-20kHz ± 3dB
Sensitivity
96dB @ 2.83 volts/1 meter
Nominal Impedance
8 ohms compatible
Power Handling
100 watts (RMS) / 400 watts (peak)
Crossover Frequency
2350Hz
Enclosure Type
Bass-reflex via rear-firing port
Inputs
Two pairs of heavy-duty binding posts (allows bi-wiring)
Finish
Black Ash or Light Cherry woodgrain vinyl
Drive Components and Dimensions
The speaker features a horn-loaded tweeter and dual woofers.
High Frequency Driver: One 1" (2.5 cm) magnetically shielded, titanium dome compression driver with an integral 5" (12.7 cm) square 90°x 60° Tractrix Horn.Low Frequency Drivers: Two 5.25" (13.3 cm) magnetically shielded, Cerametallic cone woofers.
Measurement Value
Height
36.9" (93.7 cm) with feet; 36" (91.4 cm) without feet
Width
6.8" (17.3 cm)
Depth
12.8" (32.5 cm)
Weight
37 lbs (16.8 kg)
RVX42:
Basse/médium : 2 haut-parleurs de 10,2 cm blindés magnétiquement et dotés d'un cône en aluminium/céramique (Cerametallic)
Medium/Aigu à compression
Moteur de 2,5 cm à dôme en titanium, chargé par un pavillon Tractrix à directivité intégrale de 90°
Bouton de compensation des basses suivant le positionnement de l'enceinte (installée sur le mur ou sur pied)
Bass réflex avec double évents latéraux
Coffret en médite
Pied spécifique pour usage vertical ou horizontal
Finition en aluminium extrudé
Baffle ABS
Puissance : 75 W continu (300 W crête)
Sensibilité : 94 dB/2,83 V/1 m
Bande passante (±3 dB) : 92 Hz - 20 kHz
Fréquence de coupure : 2,2 kHz
Impédance : 8 ohms compatible
Dimensions (L x H x P) : 14,6 x 61 x 11,4 cm (sans le pied) - Poids : 6,4 kg (l'unité)
2 maal RF35
2 maal RF15
1 stuk Klipsch RVX42
In goede staat enkel bij 1 RF15 moet de tweeter vervangen worden...ca 50€.
Nieuwprijs 2005 - ca 3000€.
FREQUENCY RESPONSE:
37Hz-20kHz ±3dB
SENSITIVITY:
98dB @ 2.83 volts/1 meter
POWER HANDLING:
125 watts maximum continuous (500 watts peak)
NOMINAL IMPEDANCE:
8 ohms compatible
ENCLOSURE TYPE:
Bass reflex via rear-mounted port
DRIVE COMPONENTS:
Two-way system using one 1" (2.54cm) magnetically shielded, titanium dome compression driver tweeter with a integral 6" (15.2cm) square 90°x60° Tractrix® Horn and two 8" (20.32cm) magnetically shielded, aluminum cone woofers
TWEETER:
K-130-DN 1" (2.54cm) Titanium dome compression driver
HIGH FREQUENCY HORN:
6" square 90°x60° Tractrix® Horn
HF CROSSOVER:
2600Hz
WOOFER:
Two K-1122-OB 8" (20.32cm) Cerametallic® cone / cast polymer frame
INPUT CONNECTIONS:
Two sets of binding post speaker terminals (connected via brass strap jumpers)
DIMENSIONS:
40.9" (103.9cm) x 9.25" (23.5cm) x 14.8" (37.6cm)
WEIGHT:
54 lbs. (24.5kg)
ENCLOSURE MATERIAL:
Medium density fiberboard construction (MDF)
FINISHES:
Black Ash, Light Cherry wood-grain vinyl
FEATURES:
Internally wired with Bandwidth Balanced Monster Cable®
YEARS BUILT:
2003 -
The Klipsch RF-15 is a two-way, bass-reflex system via a rear-firing port.
Specification Detail
Bandwidth (Frequency Response)
46Hz-20kHz ± 3dB
Sensitivity
96dB @ 2.83 volts/1 meter
Nominal Impedance
8 ohms compatible
Power Handling
100 watts (RMS) / 400 watts (peak)
Crossover Frequency
2350Hz
Enclosure Type
Bass-reflex via rear-firing port
Inputs
Two pairs of heavy-duty binding posts (allows bi-wiring)
Finish
Black Ash or Light Cherry woodgrain vinyl
Drive Components and Dimensions
The speaker features a horn-loaded tweeter and dual woofers.
High Frequency Driver: One 1" (2.5 cm) magnetically shielded, titanium dome compression driver with an integral 5" (12.7 cm) square 90°x 60° Tractrix Horn.Low Frequency Drivers: Two 5.25" (13.3 cm) magnetically shielded, Cerametallic cone woofers.
Measurement Value
Height
36.9" (93.7 cm) with feet; 36" (91.4 cm) without feet
Width
6.8" (17.3 cm)
Depth
12.8" (32.5 cm)
Weight
37 lbs (16.8 kg)
RVX42:
Basse/médium : 2 haut-parleurs de 10,2 cm blindés magnétiquement et dotés d'un cône en aluminium/céramique (Cerametallic)
Medium/Aigu à compression
Moteur de 2,5 cm à dôme en titanium, chargé par un pavillon Tractrix à directivité intégrale de 90°
Bouton de compensation des basses suivant le positionnement de l'enceinte (installée sur le mur ou sur pied)
Bass réflex avec double évents latéraux
Coffret en médite
Pied spécifique pour usage vertical ou horizontal
Finition en aluminium extrudé
Baffle ABS
Puissance : 75 W continu (300 W crête)
Sensibilité : 94 dB/2,83 V/1 m
Bande passante (±3 dB) : 92 Hz - 20 kHz
Fréquence de coupure : 2,2 kHz
Impédance : 8 ohms compatible
Dimensions (L x H x P) : 14,6 x 61 x 11,4 cm (sans le pied) - Poids : 6,4 kg (l'unité)
...
...
...
...
...
...
...
...
...
...
...
...
