Kenmerken
Beschrijving

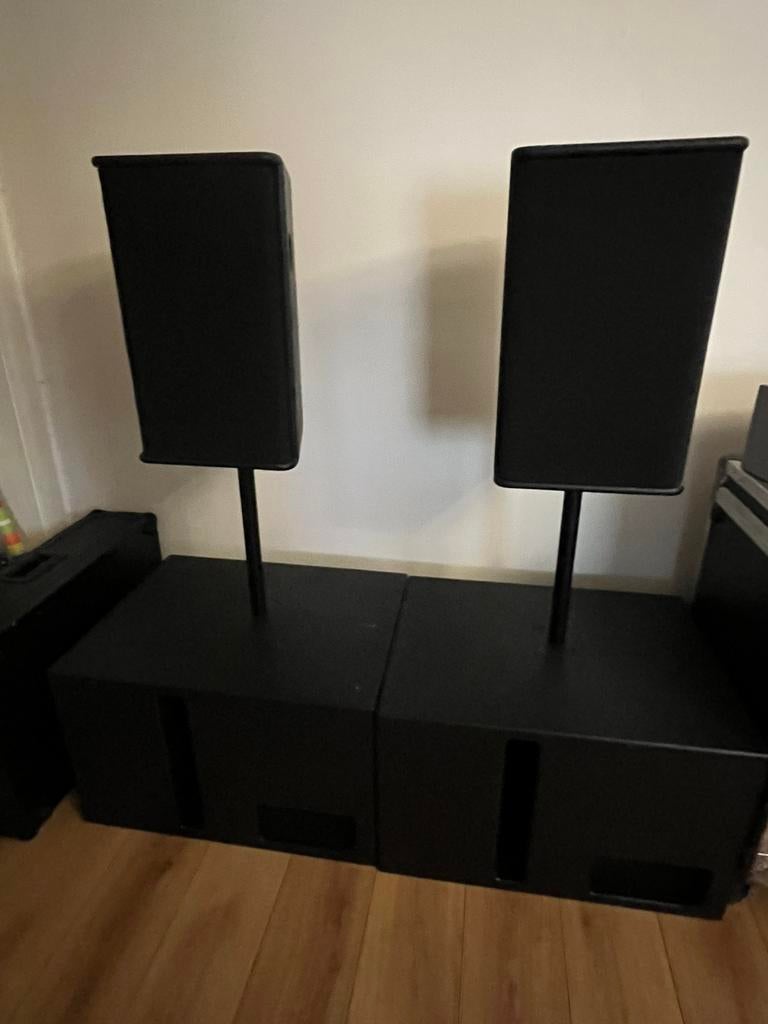

2pcs NEXO PS10 1x10"/1x1" high power loudspeakers
2 pc NEXO LS500 Sub 1x15″ Band pass subwoofer
1 Nexo nx242 procesor
1 Qsc 2000a
1 Qsc powerlight 1.8
1 Flightcase amp
2 luidsprekerhoezen, PS10
Kabels voor de gehele installatie, alles kan getest worden.
1 x 10” (25cm) Neodymium 8Ω driver
HF 1 x 1” throat driver + Low Distortion Constant Directivity
Asymmetrical Dispersion Horn
Height x Width x Depth : 515mm x 316mm x 277 mm (20.28” x 12.44” x 10.91”)
Weight : 14 kg (31 lbs)
Connectors : 2 x NL4MP Speakon 4 pole
Construction : Baltic Birch Ply finished with textured black coating
Fittings : Metal recessed pockets
Front finish : Moulded dark grey metal grill
Flying Points : One plate connecting with external accessories
Stand fittings : Built in Steel Stand Fitting, (35mm 1 3/8”)
The Nexo LS500 is a compact, high-power 15-inch passive subwoofer designed to complement the PS10 loudspeaker system, delivering 131-134dB peak SPL. It features a 4 Ohm, 15” long-excursion driver, a frequency response of 43 Hz – 110 Hz ($pm$3dB), and weighs 33 kg (73 lbs). It must be used with a Nexo controller (TDController or NX241) for optimal performance and protection.
SYSTEM SPECIFICATIONS LS500 with PS10 TD Controller
Frequency Response [a] 43 Hz - 110 Hz ±3dB
Usable Range @-6dB [a] 38 Hz - 120 Hz
Sensitivity 1W @ 1m [b] 101 dB SPL Nominal
Nominal Peak SPL @ 1m [b] 131 to 134 dB Peak (300 to 800 W RMS Amp.)
Crossover Frequencies 120 Hz Active through PS10TD
Nominal Impedance 4 Ohms
Recommended Amplifiers 300 to 800 Watts into 4 Ohms
2 pc NEXO LS500 Sub 1x15″ Band pass subwoofer
1 Nexo nx242 procesor
1 Qsc 2000a
1 Qsc powerlight 1.8
1 Flightcase amp
2 luidsprekerhoezen, PS10
Kabels voor de gehele installatie, alles kan getest worden.
1 x 10” (25cm) Neodymium 8Ω driver
HF 1 x 1” throat driver + Low Distortion Constant Directivity
Asymmetrical Dispersion Horn
Height x Width x Depth : 515mm x 316mm x 277 mm (20.28” x 12.44” x 10.91”)
Weight : 14 kg (31 lbs)
Connectors : 2 x NL4MP Speakon 4 pole
Construction : Baltic Birch Ply finished with textured black coating
Fittings : Metal recessed pockets
Front finish : Moulded dark grey metal grill
Flying Points : One plate connecting with external accessories
Stand fittings : Built in Steel Stand Fitting, (35mm 1 3/8”)
The Nexo LS500 is a compact, high-power 15-inch passive subwoofer designed to complement the PS10 loudspeaker system, delivering 131-134dB peak SPL. It features a 4 Ohm, 15” long-excursion driver, a frequency response of 43 Hz – 110 Hz ($pm$3dB), and weighs 33 kg (73 lbs). It must be used with a Nexo controller (TDController or NX241) for optimal performance and protection.
SYSTEM SPECIFICATIONS LS500 with PS10 TD Controller
Frequency Response [a] 43 Hz - 110 Hz ±3dB
Usable Range @-6dB [a] 38 Hz - 120 Hz
Sensitivity 1W @ 1m [b] 101 dB SPL Nominal
Nominal Peak SPL @ 1m [b] 131 to 134 dB Peak (300 to 800 W RMS Amp.)
Crossover Frequencies 120 Hz Active through PS10TD
Nominal Impedance 4 Ohms
Recommended Amplifiers 300 to 800 Watts into 4 Ohms
...
...
...
...
...
...
...
...
...
...
...
...
