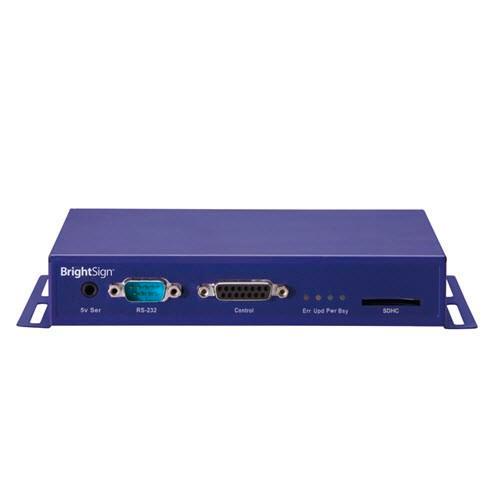

The BrightSign HD810 offers advanced interactivity for creating interactive digital signs and kiosks using touch screens, buttons and more.
Interactive playlists allow you to easily assign media playback to the interactive control devices.
Moreover, internal memory can be used to track and capture usage statistics, to better understand how users are interacting with the display.
In addition, live video can be mixed in with digital video playback making your signs all the more eye-catching and relevant.

Features:
– Looping HD media playback
– Interactivity and controls via USB, GPIO and serial ports:
– Touch screens
– USB mice, keyboards and speakers
– Button inputs
– Lighting controls
– Projectors
– Industry standard centralized control systems
– Interactive playlists with templates for easy implementation
– HDMI, component and VGA connectivity
– USB memory stick or SD memory card support
– Real time clock for content playback scheduling

Technical Info:

• Media Formats:
• Video: MPEG-2, H.264/MPEG-4 part 10/ MOV bitrate max. 24Mbit
• Images: BMP, JPEG, PNG
• Audio: MP3, HDMI
• Audio: SPDIF AC3 5.1 pass through (available via Expansion Module)

Display Resolutions:

• 1080p (via HDMI only)
• 1080i, 720p, 576p, 480p (HDMI & Component)
• 1360 x 768, 1024×768 (HDMI & VGA)
• 800 x 600, 540×480 (VGA Only)

Connectors:

• SDHC Slot
• VGA Out
• Component Video Out
• HDMI Out (DVI via adaptor)
• GPIO Control Port (8 bi-directional)
• RS-232
• 5V Serial Mini Jack
• Reset Button
• USB High Speed Host Port
• Analog Stereo Audio Out (stereo 1/8″ jack)
• LEDs: Error, Power, Busy, Update

Features:

• Looping Playlist support
• Zones (multiple content windows displayed on a single screen)
• Text Ticker Feed and Subtitles
• Basic GPIO & Serial Interactivity (buttons, lights, etc.)
• Full USB, GPIO & Serial Interactivity (buttons, touch screens, LEDs, USB speakers, keyboards, mice, USB storage devices, and more)
• Usage Tracking Statistics
• Real Time Clock with SuperCap
• Playback Scheduling and Day-Parting
• Update content from USB storage device

Accessories:

• Expansion Module (Connects via USB; Includes 2 USB ports, 18 bi GPIOs, Optical SPDIF output, 3 Analog Stereo Audio outputs, & Headphone output)
• Live Video Module (via USB adaptor)
• GPIO Button Board (via GPIO port)
• VGA Converter Module (via VGA port)

Miscellaneous:

• Dimensions (not incl. mounting brackets or connectors) 168mm (W) x 149mm (D) x 30mm (H)
• Weight 630 grams
• Power 5V / 3.0A
• Multi-Country Power & Regulatory Approvals
• Built-in Wall Mounting Brackets

Dit is een nieuw product !!
2 op voorraad
