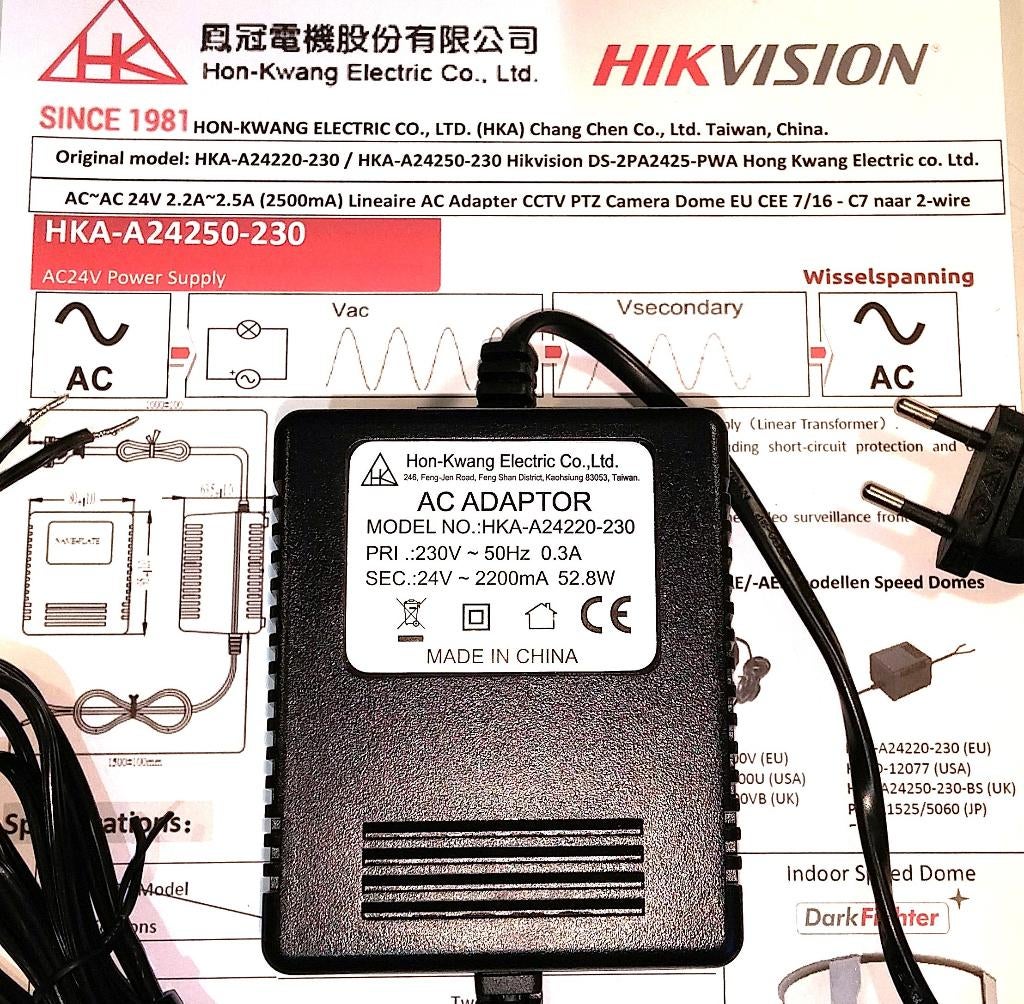

Hikvision Hon-Kwang HKA-A24220-230 24V 24VAC Voeding Linear Transformer AC24V2.2A M165278 DS-2PA2425-PWA HKA-A24250-230 (EUR) HongKwang Electric co.Ltd HKA-A24250-230 EAN 6954273626587 Lineare Stroom adapter adaptor Power Supply NETZTEIL A-merk Voeding PTZ camera AC220VIN24VOUT 24VAC/2.2A AC ~ AC 24V (Volt) 2.2A 2.5A (2200mA 2500mA) AC~AC adapter 52.8VA 60W Lineair Power Adaptor EUROPEAN Standard CEE 7/16 - C7 Hikvision CCTV IPC PTZ Camera Speed Dome DS-2D(A)E7/5/4xxx-A/-AE/-AE3.

-Prijs € 22,95 + € 5,45 NL verzendbijdrage (vanaf) DHL parcel track & tracé naar afhaalpunt (of optioneel DHL € 6,95 thuisbezorging)

Shipping International: € 14,00 Shipping for Europe PostNL small (~2KG) parcel + including tracking service / track & trace + including a signature delivery (so safe, insured, detailed following tracking of your order and a faster priority delivery.

-Original certified New / Nieuw Product (OEM) This is a Large (heavy) 1.25KG Lineair unregulated power supply (ongereguleerde voeding) 2 winding draadgewonden spoel van koper Alternate Current AC ~ AC 24V ( Wisselstroom Adapter Adaptor voor Wisselspanning toepasingen.

-High Reliability Linear Power Supply (Non Switching) 24VAC ~ AC 2200mA for Hikvision CCTV IPC PTZ Camera Network Speed Dome DarkFighter DS-2D(A)E7/5/4xxx-A/-AE/-AE3 CCTV IPC PTZ Surveillance Cameras

-Linear power supplies offer the advantage of simplicity and reliability, with minimal electromagnetic interference. However, they are often larger and less efficient compared to their switching counterparts.

-De lineaire voeding voorkomt storingen zoals hoge frequentie bijgeluiden / onderbrekingen in relatie met andere storingsgevoelige apparatuur. lineaire adapter is qua kostprijs (koperen spoelen magneet) zeer hoog om te produceren.

-A-merk / A-brand Hon-Kwang Electric Co., Ltd., founded in 1981, is a maker of power supplies & specialized in the design and manufacture for the domestic and foreign market.

-A-merk / A-brand Hikvision (Hangzhou Hikvision Digital Technology Co., Ltd.) is a leading Chinese IoT solution provider and the world's largest video surveillance manufacturer, founded in 2001 and headquartered in Hangzhou. Listed on the Shenzhen Stock Exchange since 2010, the company specializes in AIoT, video technology, machine perception, and artificial intelligence, serving over 180 countries with a wide range of security products.

-With CE keurmerk certificate (Conformité Européenne) tested and approved for the European Market.

-Original part for Hikvision M165278 CCTV PTZ-camera's video surveillance Speed Dome Hikvision DS-2D(A)E7/5/4xxx-A/-AE/-AE3 modellen ADI#: KIT-HKA-A24250EU Supplier#: HKA-A24250-230,AC24V/2.5A, EU EAN : 6954273626587

-Hikvision HKA-A24220-230 M165278,AC24V2.2A HKA-A24250-230 power adaptor features support multiple protection functions, including short-circuit protection and over-temperature protection. The power adapter meets CE standards and is suitable for IPC, PTZ dome cameras, and other video surveillance front-end products which need a 24V power supply.

-Also for universal use with Alternate Current 24V ~ specifications / not for use with DC (Direct Current) voltage specifications.

-Mount Option / DC draden (opendraad-eind) AC-output connector: Two (2) Wires: + positive and negative - with a 1.5 (meter) wire cord

-Single fase (Two step) transformer reduceert bij een bepaalde frequentie AC~ (Alternate Current) Wisselstroom = Wisselspanning voltage naar lagere toepasbare ~ AC Wisselstroom voltage (Alternate) Wisselspanning.

-Veiligheidsklasse 2 / safety class Two ; double insulated / dubbel geïsoleerd, doorgaans geen veiligheidsverbinding met aarde nodig om veilig te kunnen gebruiken. Gebruik voor indoor/ overdekt gebruik.

-With a Integrated EUROPEAN Standard CEE 7/16 - C7 power cord of 1000mm 1.0 (meter) EU stekker geïntegreerd.

-Voorzien van ventilatie gaten/ ventilation holes Heat transfer voor warmte afgifte gezien het Two step fase (eerste winding en tweede winding) van de draadgewonden spoel veel warmte genereert bij de conversie AC DC.

-Serviceable adapter with (4) screws / voeding met schroeven afgesloten en kan door gekwalificeerd personeel worden geopend voor onderhoud.

-8 maanden niet goed geld terug garantie (vervangend onderdeel garantie in de vorm van een vervangende voeding)

Specificaties / modelnumbers / replacement and original partnumbers (compatibility)

Fabrikant / manufacturer: Hong Kwang Electric co. Ltd model: HKA-A24220-230,AC24V2.2A / HKA-A24220-230,AC24V 2.2A, EU (old model)

Hikvision model: HKA-A24250-230 EAN : 6954273626587 (Hong-Kwang) M165278 DS-2PA2425-PWA (recent model)

Hikvision ADI#: KIT: HKA-A24250EU (EU version) Supplier#: HKA-A24250-230 Hikvision Speed Dome DS-2D(A)E7/5/4xxx-A/-AE/-AE3 modellen

HKKD-12077 (US version)

HKA-A24250-230-BS (UK Version)

PSE-A1525/5060 (JP Japanese version)

TEAC-66-243000V (EU version)

MKAC-66-243000U (US version)

TEAC-66-243000VB (UK Version)

LAS60-57CN-RJ45 Hi-PoE (Power over Ethernet)

Original Used with the following Hikvision PTZ IP Camera models:

Hikvision DS-2DF5225X-AEL 2 MP 25 × Network Speed Dome

Hikvision DS-2DF5232X-AE3 (T3) IP Camera

Hikvision PTZ IP Camera DS-2DE5232IW-AE(S5) Full HD Hikvision SPB

Hikvision PTZ IP Camera DS-2DE7530IW-AE - 5MP 5.9-177mm Hikvision

Hikvision PTZ IP Camera DS-2AE5232T-A(C) - 1080p 4.8 ... 153 mm AHD, HD-CVI, HD-TVI, PAL

Specificaties / Specifications Power supply

-Input voltage AC: Alternate Current / Wisselspanning 220V ~ 230V ~ 250V Wisselstroom @ 0.3A (ampere / stroomsterkte) (300mA) @ frequency 50Hz / Input Interface: CE 2-pin EUROPEAN Standard CEE 7/16 - C7 integrated Power Cord

-Ouput Voltage AC: Alternate Current / Wisselspanning 24V Volt Wisselstroom @ 2.2A ~ 2.5A (ampere / stroomsterkte) 2200mA / 2500mA milliampere

-Totaal vermogen/ maximale output: (52.8VA) 52.8W ~ 60W Watt

-No Load Output Voltage: 26.5V (volt) + 1V extra

-Type Adapter: Lineaire (draadgewonden) Adapter / Lineair unregulated / ongereguleerd

-DC connector Tip / plug none Mount option: -> Two-2-Wire + positive - negative

-Safety class Symbol (2) vierkantjes = Double insulated, Veiligheidsklasse 2, veilig te gebruiken zonder randaarde / no groud neccesary

-Thermische beveiliging Voorzien van Tripping fuse Type T 25 /E

-Operating Temperature and Humidity -10? - +40?, Humidity / relatieve vochtgheid: 30% ~ 85%

-Korte (Kortsluitingbeveiliging) overbelasting / overspanningbeveiliging OVP (Overvoltage)

-Ventilated Holes on the Exterior for heat dissipation.

-Input wire:1000±100mm -Lengte AC-input draad 1000mm 1.0 (meter)

-Output wire:1500±100mm Lengte AC-output draad 1500mm 1.5 (meter)

-Color / Kleur: Black / Zwart

-Gewicht 1230g (gram) 1.23KG

-Dimensions 96 × 81 × 64.5mm /Afmetingen Lengte 96mm x breedte 81mm x dikte 64.5mm

-Fuses/Zekering aanwezig; type: T25/E

Safety Standards

-CE keurmerk certificaat Conformité Européenne in overeenstemming gemaakt en voor gebruik conform de Europese Wet en regelgeving.

Keurmerken en certificaten:

Letter S = SEMKO Swedish / N = Nemko Nordish / D = DEMKO Danish / Fi = FIMKO Finnish / zijn oudere ENEC Europese keurmerken zijn ENEC Europese kwaliteitsmerken voor elektrische producten dat aantoont dat het voldoet aan de Europese veiligheidsnormen.

Description manufacturer HON-KWANG ELECTRIC CO., LTD.(HKA) Chang Chen Co., Ltd.

Hon-Kwang Electric Co., Ltd., founded in 1981, is a maker of power supplies & specialized in the design and manufacture for the domestic and foreign market. Hon-Kwang has developed various power supplies using the best of available technology, our main products include AC/AC adaptor, AC/DC adaptor, regulated power supply, transformer, switching power supply, ballast, charger and line matching transformer . The goal of Hon-Kwang is to provide high quality products, best service, technical support and competitive price.

In 1994, we were granted registration for the ISO 9001 for Taiwan factory. In the next year, our Shenzhen factory also recognized for ISO 9002 quality assurance. In 2001, all three factories upgraded quality assurance system from ISO 9002 to ISO 9001. In 2005, our Shenzhen factory got the ISO14001 quality assurance. In the meantime, we have gotten our products with many safety approvals, such as UL, CUL, TUV/GS/CE/CB, PSE MARK, CCC, BS, RCM MARK, PSB, KC Mark, BSMI etc, also available for other international safety marks such like,TÜV/BR,NOM,EAC. Our products also comply with the RoHS requirement and the Energy Star/CEC/DOE/Erp/Nr-Can & MEPS.

Hon-Kwang is a factory-direct company headquartered in Kaohsiung of Taiwan, the biggest industry city in Taiwan. Our manufacturing locations are both in Taiwan and China. With still increasing business demands, we built the second factory in Shenzhen of China in 1995. There are over 2,500 employees in this factory and production capacity over 6,000,000 pcs per month. In 1999, we built the third factory in Shanghai of China, to further step of satisfying customer's demand. The monthly production capacity for the factory is around 3,000,000 pcs. In the rapid changing of world economic, we always believe "fast delivery with quality product" is the best way to serve our customer.
