Kenmerken
Maximale vergroting
Minder dan 400x
Beschrijving
NIEUW in doos

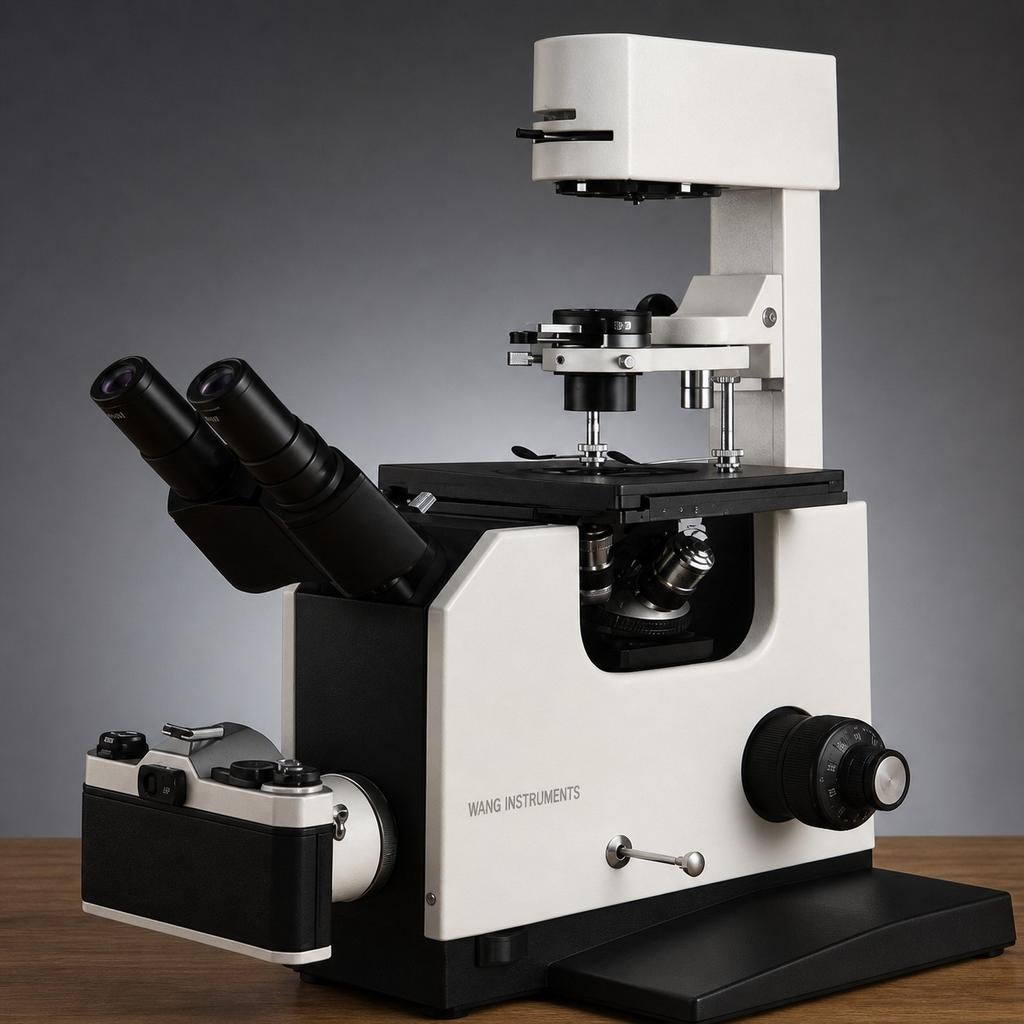

De Wang BioMedical 7002 is een trinoculaire omgekeerde (inverted) microscoop ontworpen voor professioneel gebruik in de biologie en geneeskunde, specifiek voor het observeren van levende cellen en weefsels in kweekvaten zoals petrischalen en flessen.
Technische Specificaties
Op basis van technische documentatie van Wang BioMedical beschikt dit model over de volgende kernmerken:
• Optiek & Behuizing:
• Uitgerust met een trinoculaire kop inclusief een geïntegreerde instelbare bundelsplitser voor gelijktijdig gebruik met videocamera's of fotomicrografie.
• De behuizing is gemaakt van onder druk gegoten aluminium voor maximale stevigheid en stabiliteit, wat essentieel is voor trillingsvrije beelden bij hoge vergrotingen.
• Verlichting:
• Maakt gebruik van een krachtig 6V 30W halogeenverlichtingssysteem.
• Beschikt over een traploze regelaar en een solid-state spanningsindicator aan de voorzijde van de basis.
• Ontwerp & Ergonomie:
• De transformator is in de basis ingebouwd om het zwaartepunt te verlagen voor extra stabiliteit.
• De brede basis fungeert als ergonomische armsteun voor langdurig comfortabel gebruik.
Belangrijkste Toepassingen
Door de omgekeerde configuratie—waarbij de objectieven zich onder het platform bevinden—is de 7002 uitermate geschikt voor:
• Observatie van levende celculturen: Directe inspectie door de bodem van transparante kweekvaten.
• Microfluïdisch onderzoek: Gebruik in combinatie met microfluïdische chips voor bijvoorbeeld virusisolatie of screening van gastheercellen.
• Celmanipulatie: Dankzij de vrije ruimte boven het platform kunnen monsters eenvoudig worden gehanteerd of bemonsterd terwijl ze worden geobserveerd.
General specifications
1 Turning binocular tube
Interpupillary distance 55 to 75 mm. Photoport, T-mount camera adapter for 35 mm camera, SLR camera 35 mm with light measurement.
2 Mechanical stage
Integral mechanical stage, the entire stage surface moves in X and Y directions thus removing the need for special adapters. Dimensions: 180 x 155 mm, accepts 10 cm petri dishes, inserts with 6 and 4 cm diam., and inserts for culture flasks, low set-coaxial controls, stage is fixed to the microscope body to ease use of micromanipulators.
3 Coaxial fine and coarse focusing
Low set controls, planetary gear, fine focusing with 0.002 mm graduation, adjustable friction, focusing limit control.
4 Objectives
Standard plan-achromatic DIN 160 mm objectives, long working distance objectives corrected for 1.5–2 mm glass (WD = free working distance):
10x NA 0.25 WD 5.8 mm
25x NA 0.40 WD 4.8 mm
40x NA 0.60 WD 2.0 mm
Long working distance positive phase contrast objective:
25x NA 0.40 WD 4.8 mm
Centring telescope to adjust phase rings is included.
5 Nosepiece and condenser
A precision nosepiece, rotating on large precision bearings with detents with maximum object height 43 mm. N.A. 0.3 condenser, long working distance condenser N.A. 0.3 (optional) working distance about height 150 mm.
Magnification: 100x – 400x
6 Eyepiece
Wide field G10x, wide field G16x (optional). Focusing eyepiece 10x with crosshair and horizontal micrometer.
7 Transmission light source
Adjustable 6V 20W halogen, centering of the lamp from outside in X, Y and Z directions. Easy access to replace lamp.
8 Filters
Filter wheel with the following filters:
daylight conversion
yellow
green
neutral density 50%
9 Power requirements
110V 60 Hz or 220–240V 50 Hz. Spare lamp included. Fuse 250V 750 mA.
10 Footprint
Length 29 cm, width 27.5 cm.
11 Packing
Styrofoam, carton dimensions 0.68 x 0.50 x 0.29 m, volume 0.1 cbm; brut weight 18 kg.
