Te Koop:

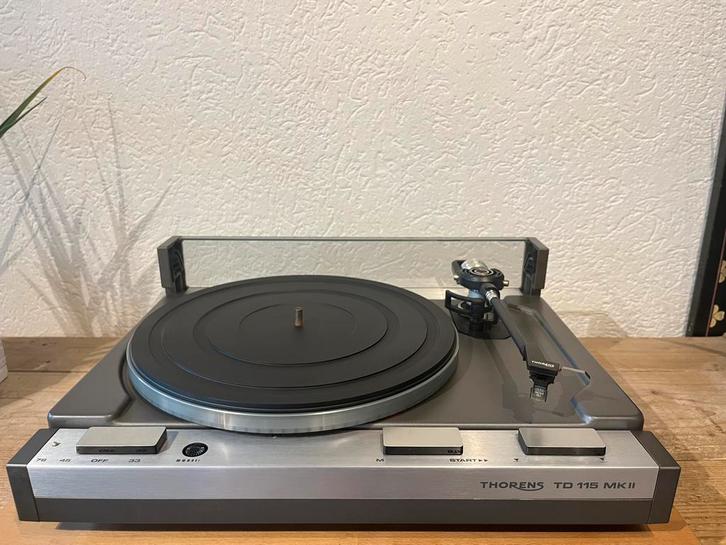

Thorens TD-115 MKII draaitafel.
De draaitafel werkt goed.
Met een goed Ortofon VMS 20 EO MKII element.
Alles werkt maar geeft een zwaar brommend geluid.
Moet daarom nagekeken worden.
De kap heeft een flinke barst.
Cosmetisch in heel nette staat.

General

Manufacturer: Thorens
Model: TD 115 MK II
Type: Turntable
Years of manufacture: 1981 - 1984
Made in: Germany
Color: Black or gray
Power consumption: 5W
Dimensions: 445 x 355 x 130 mm (WxDxH)
Weight: 7 kg
Original price approx.: 600 DM

Connections Outputs: Connecting cable fixed (capacitance approx. 230pF)


Technical data

Drive: Belt
Motor: Direct current motor with 72-pole tachogenerator, elec. Comparator circuit (DC)

Speed: 33 1/3, 45, 78 rpm
Synchronous running fluctuations: <= 0,045% according to DIN45507
Rumble noise ratio: 68dB according to DIN 45538
Turntable: zinc injection moulding, 300 mm, 1,3 kg
Operating mode: selectable (manual, tonearm lift)
Pitch: ±6 %
Tonearm: TP30 with end tube TP70
- Effective length 222mm
- Effective mass 7,5g
- Overhang 15,5mm
- Offset angle 23
- Max. tangential toe angle error <0.18°/cm sound plate radius
- Bearing friction <= 0.15mN

Special Features

Automatic optoelectrical end stop with lifting of the tone arm
Stoboscope for fine speed adjustment integrated in the turntable
Skating adjustment magnetic
2nd belt at platter bearing to compensate the queer forces by the drive belt
Subchassis with 4-point ortho-inertial suspension


Improvements to TD 115:
different motor and motor control
Tonearm base TP30 was set higher
thicker rubber mat for better damping of the platter
additional 78 rpm

Kom gerust vrijblijvend kijken en luisteren.
Mvg
Guus
