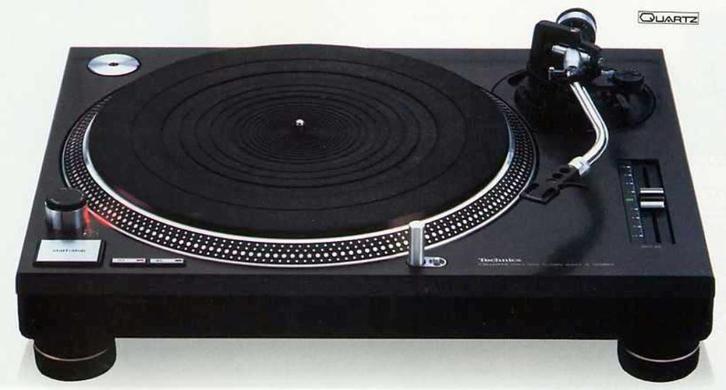

Set 2 Technics SL 1200 SL1200 mk3 direct drive draaitafels

Zonder naalden/elementen of stofkappen.

De set is te testen.

DataGeneral
Manufacturer: Technics
Model: SL-1200 MK3
Type: Turntable
Years of manufacture: 1989 - 1997
Made in: Japan
Color: Black
Power consumption: 13,5 W
Dimensions: 453 x 162 x 360 mm (WxHxD)
Weight: 12.5 kg
Original price approx.: 990 DM

Connections
Outputs: 1x RCA cable

Technical data
Drive: direct drive, quartz-controlled
Motor: DC motor, brushless
Speed: 33.33/min, 45/min
Synchronous speed fluctuation: 0.025 % (WRMS)
Rumble noise ratio:
-56 dB (IEC, unweighted).
-78 dB (IEC, rated)

Turntable: 33.2 cm; aluminium; 1.7 kg
Operating mode: manual
Pitch: ±8 %
Tonearm: Technics
Material:
Total length:
Length pivot point - tip: 230 mm
Offset angle: 22º
Pickup overhang: 15 mm
Counterweight overhang:
permissible pickup weights: 3.5 - 13 g / 11 - 20.5 g (including headshell).
inertial mass of the arm: 12 g
adjustment range for support weight: 0 - 4 g
height adjustment range: 6 mm
cable capacity:

pickup: Technics EPC-207 C (MM), later without pickup

Special Features
Four-row stroboscope with illumination
Illumination for pickup (incandescent lamp)
Electronic brake
Rubber disc mat
Speed control (pitch)
Max. Torque: 1.5 kg/cm
Start-up time: 0.7 s
