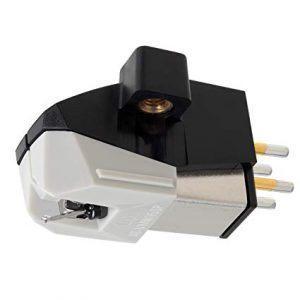

VM95 series 78rpm SP cartridge
Since SP records have monaural modulation, when combining an SP stylus with a stereo body, such as the AT-VM95SP, it is recommended to use the “MONO ON” function “ of your standard Stereo Phono Preamplifier to minimize record surface noise.
AT-VM95SP, as stereo cartridge for SP mono records, when used with a dedicated archiving phono preamplifier equalizer incorporating various functions to generate a mono signal from Stereo inputs (Mono L+R, Mono L, Mono R, LR Variable Mix) allows professional archivers to minimize noise and distortion by sampling the least damage side of the grooves from an old record.

• 3mil SP stylus for reduced record surface noise
• Aluminium cantilever
• 2.7mV output voltage
• Compatible body with all VM95 Series stylus assemblies

VM95 Series – Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.Conical Bonded (3mil) Stylus
A conical bonded stylus with a large curvature radius at the tip. The curvature radius is 3 mil, and suitable for playing 78 RPM records from a wide variety of eras.No use of nuts
VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.
Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers
Specifications
Model
AT-VM95SP
Type
VM Stereo Dual Magnet
Bevestiging
1/2” centres
Frequentierespons
20 – 20,000 Hz
Balans uitgangskanaal
1.5 dB (1 kHz)
Uitgangsspanning
2.7 mV (@ 1 kHz, 5 cm/sec)
Verticale trackinghoek
23°
Bereik verticale trackingskracht
4.5 – 5.5g (standard 5.0g)
Naaldvorm
SP 3 mil Conical Bonded
Naaldgrootte
3 mil
Naaldconstructie
Bonded Round Shank
Cantilever
Aluminium Pipe
Spoelimpedantie
3.3 kΩ (1 kHz)
Spoelinductantie
550 mH (1 kHz)
Gelijkstroomweerstand
485 Ω
Statische compliantie
12 x 10 – 6 cm / dyne
Dynamische compliantie
2 x 10 – 6 cm / dyne (100 Hz)
Spoeldraad
T.P. Copper
Aanbevolen ladingsimpedantie
47,000 Ω
Aanbevolen ladingscapaciteit
100-200 pF
Elementgewicht
6.1g
Afmetingen
17.2 x 18.9 x 28.3 ( H x W x D mm)
Vervangingsnaald
AT-VMN95SP
Meegeleverde accessoires
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
