Beschrijving

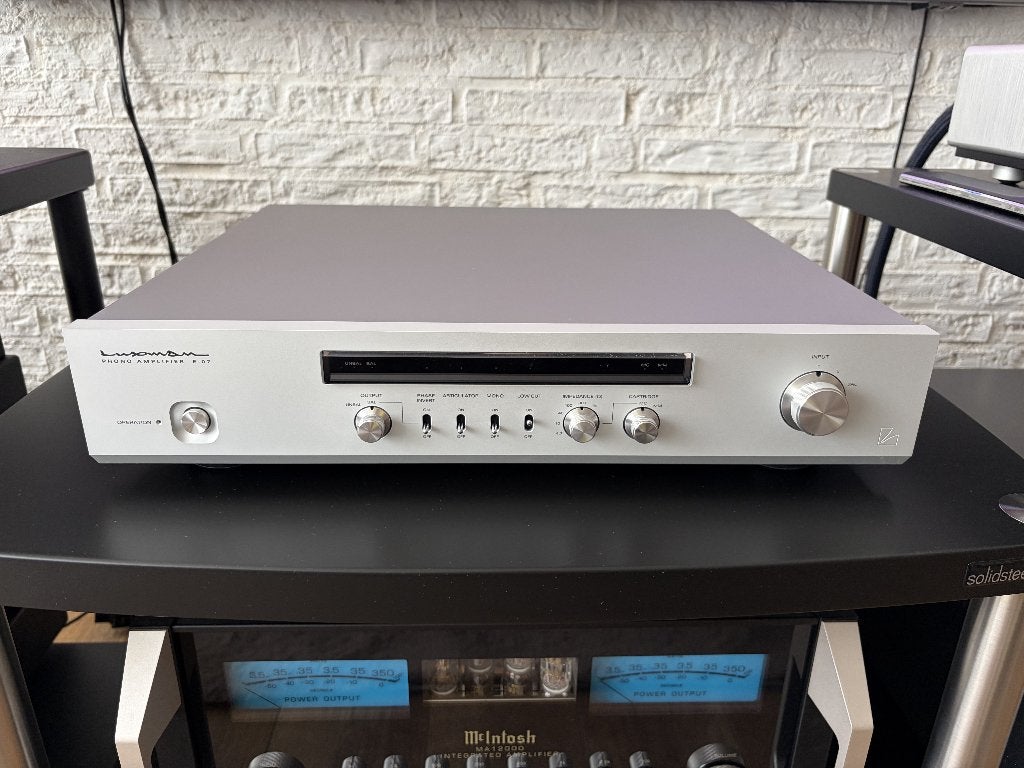

A phono preamplifier that change forever how you listen your records. This true balanced phono stage brings alive music from the deepest groove in your records straight to your heart.
Retail price is: €6.500, now for €4800. Comes with warranty and original package.
The product is only open box and tested for its functionality.
Of course, the more you ezitate to purchase it, the more we enjoy listening to it. :)
Spec Circuit configuration Non-feedback type phono equalizer
(RIAA, first stage four parallel FET, unbalanced configuration)
MC step-up transformer
Super permalloy core x 4 (L/R channel, L/H impedance independent) : 0.3mV / 100Ω
Input sensitivity MM 3.2mV, MC-H 0.37mV, MC-L 0.12mV
Rated output / output impedance 250mV / Unbalanced 300Ω, Balanced 600Ω Load capacity MM 0 / 100 / 200 / 320pF
Gain MM 38dB, MC-H 57dB, MC-L 66dB
Maximum input MM 120mV, MC-H 15mV, MC-L 5mV RIAA response
MM 20Hz to 20kHz (±0.1dB), MC 20Hz to 20kHz(±0.3dB)
Total harmonic distortion 0.003%
S/N ratio (IHF-A) MM 88dB, MC-H 81dB, MC-L 78dB
Channel separation 80dB or more
Power transformer OI type x 3 (L/R independent + Peripheral circuit)
Insulator feet Density gradient
Power supply 230V~(50Hz) / 115V~(60Hz)
Power consumption 13W
External dimensions 440(W) x 92(H) x 407(D) mm front side knob of 14mm and rear side terminal of 37mm included in depth
Net weight 13.2kg (main unit)
Accessories Power cable
Retail price is: €6.500, now for €4800. Comes with warranty and original package.
The product is only open box and tested for its functionality.
Of course, the more you ezitate to purchase it, the more we enjoy listening to it. :)
Spec Circuit configuration Non-feedback type phono equalizer
(RIAA, first stage four parallel FET, unbalanced configuration)
MC step-up transformer
Super permalloy core x 4 (L/R channel, L/H impedance independent) : 0.3mV / 100Ω
Input sensitivity MM 3.2mV, MC-H 0.37mV, MC-L 0.12mV
Rated output / output impedance 250mV / Unbalanced 300Ω, Balanced 600Ω Load capacity MM 0 / 100 / 200 / 320pF
Gain MM 38dB, MC-H 57dB, MC-L 66dB
Maximum input MM 120mV, MC-H 15mV, MC-L 5mV RIAA response
MM 20Hz to 20kHz (±0.1dB), MC 20Hz to 20kHz(±0.3dB)
Total harmonic distortion 0.003%
S/N ratio (IHF-A) MM 88dB, MC-H 81dB, MC-L 78dB
Channel separation 80dB or more
Power transformer OI type x 3 (L/R independent + Peripheral circuit)
Insulator feet Density gradient
Power supply 230V~(50Hz) / 115V~(60Hz)
Power consumption 13W
External dimensions 440(W) x 92(H) x 407(D) mm front side knob of 14mm and rear side terminal of 37mm included in depth
Net weight 13.2kg (main unit)
Accessories Power cable
...
...
...
...
...
...
...
...
...
...
...
...
