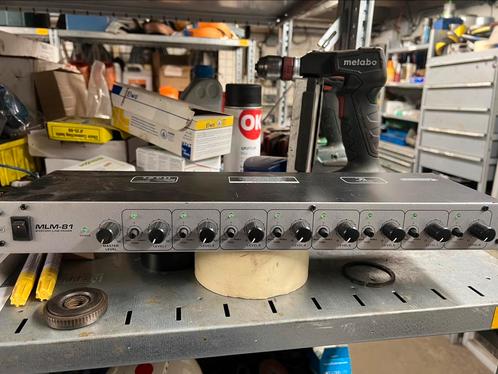

Microfoon lijn mixer 8 kanaals

Microphone line mixer, 8 channels

For mixing up to 8 mono input signals to 1 mono output
8 mic/line channels with separate level and tone controls and signal LEDs
Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4″) input
Each mic input with optional 12 V phantom power via DIP switches
Master level control; master out via balanced 6.3 mm jack (1/4″)
Feed-through output (independent of master control) for connecting a further MLM-81
Each 6.3 mm line input can be separately converted to a line output via internal jumpers
Rack installation, 1 U
Power supply: 230 V AC, 50 Hz
Power consumption: 10 W
Input impedance: 600 ohms (Mic), 18 kohms (Line), 10 kohms (Aux Bus)
Max. input level: -23 dBV (Mic), +22 dBV (Line)
Phantom power: 12 V
Max. output level: +17 dBV
Output impedance: 51 ohms
Max. gain: 69 dB (Mic), 26 dB (Line)
Distortion: <0.003 %
S/N ratio: 106 dB
Dimensions (W x D x H): 482 x 152 x 44 mm
Weight: 2.3 kg
