TE KOOP

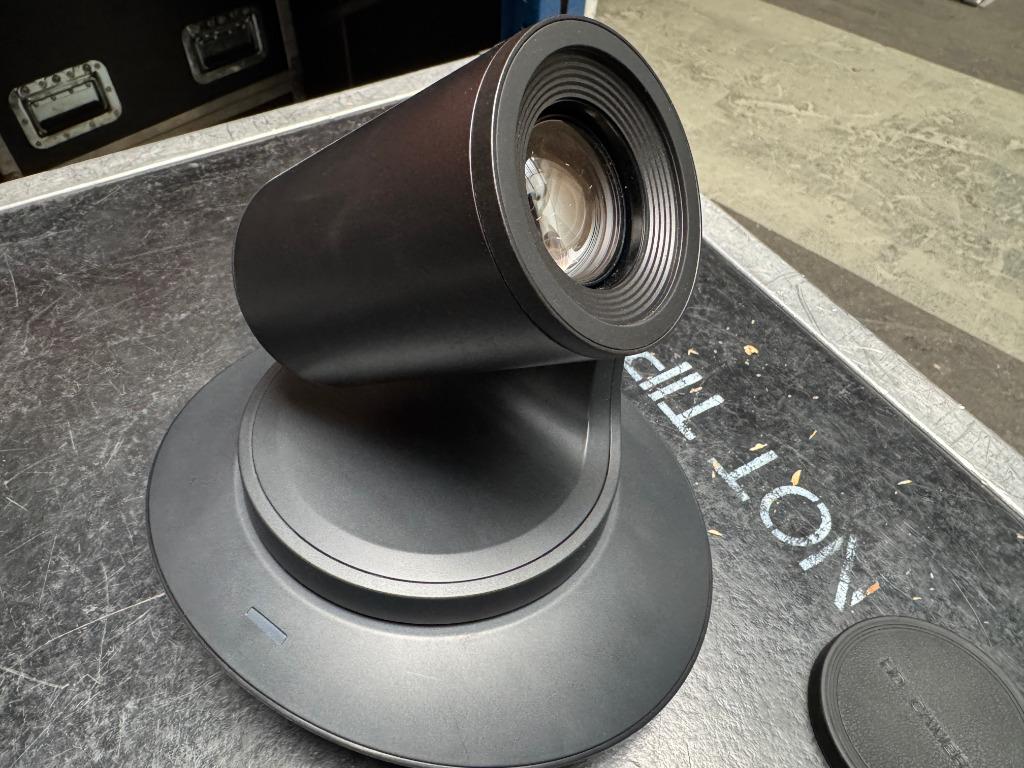

EVERET EVP220N
20x NDI FHD PTZ Video Camera

● Panasonic 1/2.8 inch 5MP sensor providing 1080P60 full HD video
● High quality optical lens 60.5 degree field of view, 20x optical zoom, 2x digital zoom
● NDI|HX, HDMI, 3G-SDI, USB 3.0 video outputs interface
● 1080p60 video over IP, H.264, H.265 encoding
● NewTek NDI | HX v4.5 video transmission and control
● 3G-SDI compatible with Blackmagic Design SDI Level-B
● White Balance, Exposure, Focus, Iris can be adjusted automatically or manually
● Power over Ethernet (PoE) support: get video, control, tally and power supply with
one CAT5/6 cable
● Built-in tally light
● Special Focusing Algorithm: fast and precise focusing performance when zooming or
moving
● Smooth PTZ mechanical design, accurate pan tilt motor control
● 128 presets supported
● Standard Sony VISCA, VISCA over IP, PELCO-P, PELCO-D control protocol; IP VISCA
over both TCP and UDP
● Daisy chain supported, max 7 cameras connected in VISCA protocol
● Image flip function, support upside-down installation
● Supplied with functional IR remote controller
● Fast video format switch: less than 3 seconds
● Support RS232/RS485
● Support IR transfer function, code of the third party remote controller can be
transferred to the host via VISCA IN port, in case client’s developmen
