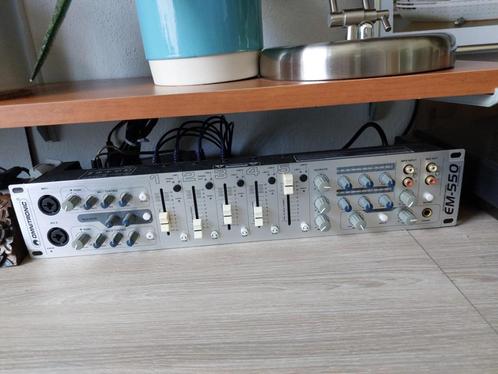

OMNITRONIC EM-550 Multifunctional 5+2-channel installation mixer, silver.
Specifications:
5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders.
2 separate microphone channels with level control, 3-way equalizer and talkover button.
Talkover level and response time adjustable.
Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output.
Color illuminated rotary controls and rubber buttons.
1 additional line input with level control on the front panel.
2 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter.
1 adjustable booth output with mono/stereo selector switch.
2 record outputs (independent of the master channels) with on/off switch for microphone signals.
Inputs: 9 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack).
Outputs: 2 x master (optionally 3-pin XLR or stereo RCA), 1 x booth (stereo RCA) and 2 x record (stereo RCA).
Operation via supplied power unit.
19 inch, 48.3 cm rack installation 2 U.
Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke).
Dimensions: Width: 48,3 cm - Depth: 11,5 cm - Height: 8,9 cm.
