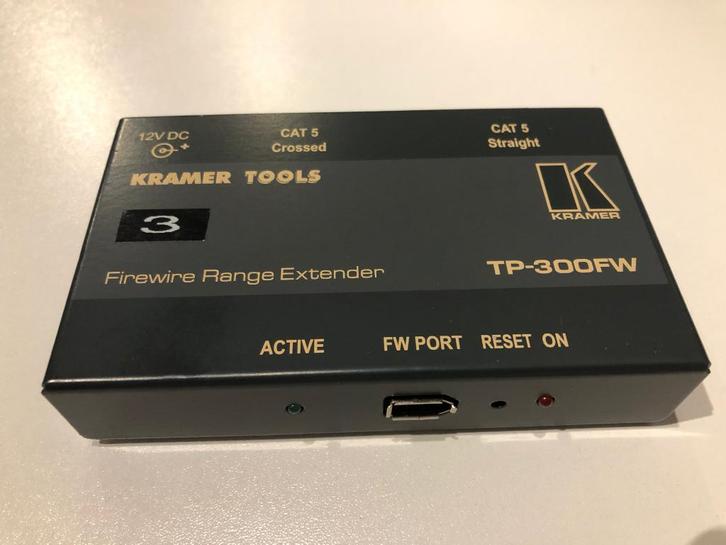

Kramer Switcher TP-300FW - Firewire Range Extender
Nieuwprijs €329,95

Heb er 5 te koop, maar die zijn heel weinig gebruikt. Nu tegen elk aannemenlijk bod.

Ook per stuk.

The TP-300FW is a twisted pair transmitter or receiver for FireWire (IEEE 1394) signals. When used in pairs, one will convert a FireWire signal into a twisted pair signal and the other will convert the twisted pair back to a FireWire signal and simultaneously output the twisted pair signal to another TP-300FW.

• Twisted Pair Ports - RJ-45.
• System Range - Up to 100 meters (320’) and up to 200 meters (640’) using a 3rd TP-300FW.
• Cable Type - Use STP (shielded twisted pair) cable for highest performance. UTP (unshielded twisted pair) cable can be used but usable cable distances may be lower than the specified 200ft. (60 meters).
• ESD Protection - Incorporates Kramer’s Spark Guard Pro™ signal protection circuitry to help protect against EDS (electrostatic discharge) which can damage digital equipment.
• Power Connect™ System - Only one unit in a system, the transmitter or the receiver needs to be connected to a power source.
• Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter. Additional rack adapters with other configurations are also available.

PORT: One 6-pin serial 1394 port; 2 RJ-45 CAT-5 ports.
RANSFER RATE: 100Mbps IEEE-1394
STANDARDS: IEEE 1394a-2000, IEEE 1394-1995, IEEE 1394b-2002 @ up to 100Mpbs
ESD LINE PROTECTION: IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact), IEC 61000-4-5(Lightning) 12A (8/20us), and IEC 61000-4-4 (EFT) 40A (5/50ns)
POWER SOURCE: 12VDC, 60mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H. WEIGHT: 0.3kg (0.67 lbs) approx.

NB: De 12v voedingsadapter zit er niet bij.

Prijs p.st. vast: 75,-
