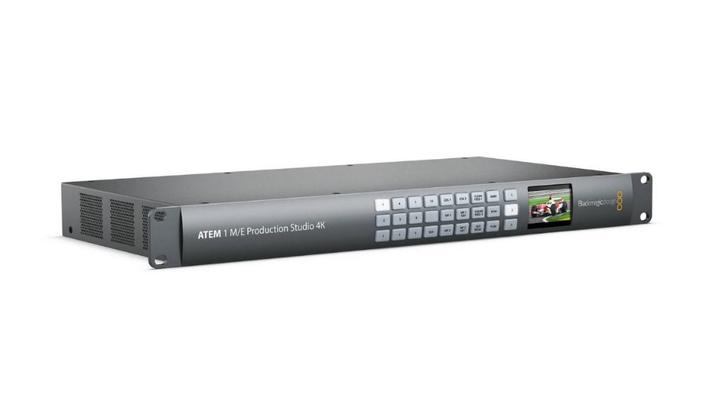

2 Stuks te koop, deze worden i.v.m. het wegvallen van een project niet meer gebruikt.

Technische specificaties

• Effect Types
• 1x DVE and Stinger

4x Chroma Key
7x Luma Key

• Downstream Keys
• 2x Alpha
• Generators
• 7x Pattern

2x Color

• Processing
• Switching Type
• Pushbutton, Software
• Latency
• 2 Lines
• Color Processing
• 10-Bit
• Input
• Number of Video Input Sources
• 10
• Video Inputs
• 10x BNC (6G-SDI)

1x HDMI

• Input Video Format
• SDI (10-Bit)

UHD 4K at 23,98/24/25/29,97/30 fps
1080p 23,98/24/25/29,97/50/59,94 fps
1080i 50/59,94 fps
720p 50/59,94 fps
576i / 625 lines 25 fps
480i / 525 lines 29,97 fps
HDMI
UHD 4K at 23,98/24/25/29,97 fps
1080p 50/59,94 fps
1080i 50/59,94 fps
720p 50/59,94 fps
576i / 625 lines
480i / 525 lines

• Audio Inputs
• 2x XLR 3-Pin

1x 2RCA

• Embedded Audio Input
• SDI: 2-Channel (per Input)
• Output
• Video Output Channels
• 1
• Video Outputs
• 2x BNC (6G-SDI) (Program)

1x BNC (HD-SDI) (Program)
1x HDMI (Program)
1x BNC (6G-SDI) (Preview)
3x BNC (6G-SDI) (Pass-Through)

• Output Video Format
• SDI (10-Bit)

UHD 4K at 23,98/24/25/29,97/30 fps
1080p 29,97/50/59,94 fps
1080i 50/59,94 fps
720p 50/59,94 fps
576i / 625 lines
480i / 525 lines
HDMI (10-Bit)
UHD 4K at 23,98/24/25/29,97 fps
1080p 50/59,94 fps
1080i 50/59,94 fps
720p 50/59,94 fps
576i / 625 lines
480i / 525 lines

• Audio Outputs
• 2x XLR 3-Pin
• Multiview Output
• 10-Way Multiview via SDI

10-Way Multiview via HDMI

• Connectivity
• Other I/O
• 1x BNC Blackburst, Tri-Level Sync

1x RJ45 LAN
1x USB-B
1x DE-9/DB-9 RS-422

• Video Standard Compliance
• SMPTE 259M/292M
• HDCP Support
• No
• Display
• Display Size
• 2"
• Hardware
• OS Compatibility
• macOS 10,7 or Later

macOS 10,8 or Later
Windows 7
Windows 8

• Processor
• Not Specified by Manufacturer
• Wi-Fi
• No
• Bluetooth
• No
• Power I/O
• 2x IEC C14 Input
• Power Consumption
• Device: 100 to 240 VAC (300 W)
• General
• Rack Form Factor
• 1 U
• Dimensions
• 19 x 9,25 x 1,7" / 48,26 x 23,5 x 4,32 cm
• Weight
• 5,73 lb / 2,6 kg
