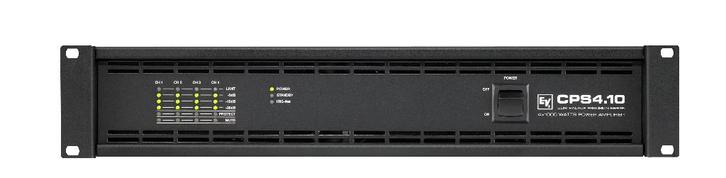

Dynacord / Electrovoice CPS 4.10 versterker in 100% werkende staat.

versterker heeft een vermogen van 4 x 1000 watt, incl. alle bijbehorende connectoren.

Four channels in one compact rack-efficient unit1000 W per channel70/100 V operation for distributed systemsClass-D design for optimum efficiencySlot for optional RCM-810 module, allowing IRIS-Net control and monitoringIRIS-Net selection of each channel's impedance (2-10 Ω in 0.1 Ω steps)Rear-mounted attenuatorsSwitchable 50 Hz high-pass filter (Hi-Z mode)Complete protection: thermal, overload, shorts, HF, DC, back-EMF, inrush currentPhoenix-type input and output connectionsRemote power-on/off contactProgrammable power-on delay settingsFront-to-rear fans
Specifications
Height
88.1
Width
482.6
Depth
421.5
Frequency Response (-3 dB)
15 Hz-30 kHz
Weight Net
11.1
Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω
450
Specifications
Maximum Bridged Output 8Ω
2000
Maximum Bridged Output 4Ω
2000
Total Harmonic Distortion
0.05
Slew Rate
28
Intermodulation Distortion (SMPTE)
0.05
DIM 30
0.02
Signal-to-Noise Ratio (A-weighted)
103
Input Impedance (Balanced)
20
Input Sensitivity
0 dBu (.775V)-2ω, +3 dBu (1.1V)-4/8ω, +6 dBu (1.55) 70V/100V
Network Control (IRIS-Net)
Optional (RCM-810 card)
Amplifier Gain
32 dB (Lo-Z), 33 dB (70V), 36
Continuous Rated Power (1 kHz, THD 1%) 100v
1000
Continuous Rated Power (1 kHz, THD 1%) 70v
1000
Continuous Rated Power (20-20 kHz, THD<0,2%) 100v
900
Continuous Rated Power (20-20 kHz, THD<0,2%) 70v
900
Analog Inputs
4, electronically balanced, Phoenix-type
Maximum Input Voltage
+22
Mains Voltage
220 - 240 V, 50 - 60 Hz or 120 V, 50 - 60 Hz, 50 - 60 Hz
CAN Bus Interface
Optional (RCM-810 card)
Cooling
Front-to-Rear, continuously variable fans
Audio Network
No
Variable Load Drive (VLD)
Yes
Topology
Class-D
Continuous Rated Power (1 kHz, THD 1%) 4Ω
1000
Impedance
2/4/8/8 VLD/70 V/100V
Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω
900
Electronics Type
Amplifier
Continuous Rated Power (1 kHz, THD 1%) 2Ω
1000
Continuous Rated Power (1 kHz, THD 1%) 8Ω
500
