Kenmerken
Conditie
Gebruikt
Type
Audio
Beschrijving

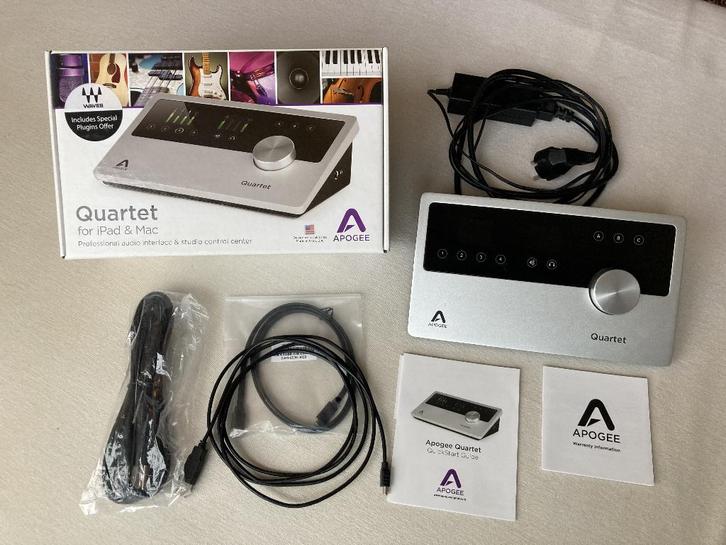

Hierbij bied ik mijn Apogee Quartet aan. Een aantal jaren met liefde gebruikt, maar wil graag overstappen op een interface met nog meer inputs. Functioneert volledig naar behoren, heeft enkele lichte gebruikerssporen. Erg fijn apparaat.
Ophalen in Utrecht of verzenden met PostNL/DHL.
Features:
• USB 2.0 High-speed Mac audio interface
• A/D and D/A conversion: 24 bit/192kHz
• 4 Analog Inputs:
• Combination line (balanced +20dBu max)
• Mic/Instrument (+20dBu/+14dBu max)
• 4 Microphone preamps with up to 75dB of gain
• Selectable 48v phantom power, Soft Limit and phase invert
Digital Inputs:
• ADAT/SMUX Input, 8 channels, 2 Toslink connectors, 44.1kHz to 96kHz
• MIDI input (USB-A type connector)
8 Analog Outputs:
• 6 Balanced line outputs, +20 dBu maximum output level
• 1 Independent 1/4” stereo headphone output
Digital Outputs:
• MIDI output (USB-A type connector)
• Word clock output on BNC connector
• 2 top panel high-resolution OLED displays
• Controller knob
• 6 touchpads for direct selection of inputs and outputs
• 3 assignable touchpads to control:
• Mute Outputs
• Dim Outputs
• Sum to Mono
• Clear Meters
• Engage Speaker Set (allows monitoring of up to 3 pairs of speakers)
• Low latency monitoring, complete input/output control with Apogee’s Maestro software
• Legendary Apogee sound quality
• Designed in California – Made in the U.S.A.
Mic Pre:
• EIN: 128dB (un-weighted) @ 60dB, 150Ohm input
• Max input level: +20dBu
• Input impedance: 3KOhm
Hi-Z:
• Max input level 14 dBu
• Input impedance: >2MOhm
A/D conversion:
• Max input level (+4dBu ref): +20dBu
• Max input level (-10dBV ref): +6dBV
• Input impedance: 5KOhm
• Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
• Rel. THD + N: -106dB (@ 96Khz)
• Dyn. Range: 114dB (A-weighted)
D/A conversion:
• Max output level (+4dBu ref): +20dBu
• Max output level (-10dBV ref): +6dBV
• Line output impedance: 90 Ohm
• Max output level headphones: 19dBu
• HPH output impedance 30 Ohm.
• Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
• Rel. THD+N : -113dB (@96Khz)
• Dyn Range: 123dB (A-weighted)
Ophalen in Utrecht of verzenden met PostNL/DHL.
Features:
• USB 2.0 High-speed Mac audio interface
• A/D and D/A conversion: 24 bit/192kHz
• 4 Analog Inputs:
• Combination line (balanced +20dBu max)
• Mic/Instrument (+20dBu/+14dBu max)
• 4 Microphone preamps with up to 75dB of gain
• Selectable 48v phantom power, Soft Limit and phase invert
Digital Inputs:
• ADAT/SMUX Input, 8 channels, 2 Toslink connectors, 44.1kHz to 96kHz
• MIDI input (USB-A type connector)
8 Analog Outputs:
• 6 Balanced line outputs, +20 dBu maximum output level
• 1 Independent 1/4” stereo headphone output
Digital Outputs:
• MIDI output (USB-A type connector)
• Word clock output on BNC connector
• 2 top panel high-resolution OLED displays
• Controller knob
• 6 touchpads for direct selection of inputs and outputs
• 3 assignable touchpads to control:
• Mute Outputs
• Dim Outputs
• Sum to Mono
• Clear Meters
• Engage Speaker Set (allows monitoring of up to 3 pairs of speakers)
• Low latency monitoring, complete input/output control with Apogee’s Maestro software
• Legendary Apogee sound quality
• Designed in California – Made in the U.S.A.
Mic Pre:
• EIN: 128dB (un-weighted) @ 60dB, 150Ohm input
• Max input level: +20dBu
• Input impedance: 3KOhm
Hi-Z:
• Max input level 14 dBu
• Input impedance: >2MOhm
A/D conversion:
• Max input level (+4dBu ref): +20dBu
• Max input level (-10dBV ref): +6dBV
• Input impedance: 5KOhm
• Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
• Rel. THD + N: -106dB (@ 96Khz)
• Dyn. Range: 114dB (A-weighted)
D/A conversion:
• Max output level (+4dBu ref): +20dBu
• Max output level (-10dBV ref): +6dBV
• Line output impedance: 90 Ohm
• Max output level headphones: 19dBu
• HPH output impedance 30 Ohm.
• Freq resp 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
• Rel. THD+N : -113dB (@96Khz)
• Dyn Range: 123dB (A-weighted)
...
...
...
...
...
...
...
...
...
...
...
...
