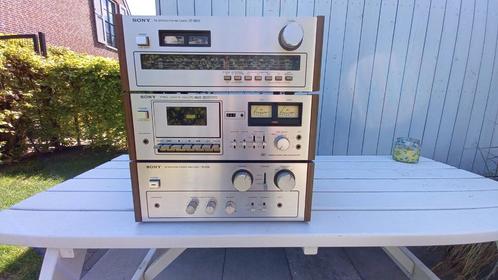

Sony TA1630/2650 + ST2950F + TC186SD Vintage Set (1975-79)

Keurig nette set. Komt uit verzameling. Destijds werkend weggezet.

Heb ook nog 2 super nette TA-2650 versterkers. Deze in combinatie is tevens mogelijk!

(Alle apparaten uit mijn verkoop zijn altijd nagekeken, geserviced en indien benodigd hersteld)

Sony TA-1630 Stereo Integrated Amplifier (1975-77)

• Power output: 22 watts per channel into 8Ω (stereo)
• Frequency response: 20Hz to 100kHz
• Total harmonic distortion: 0.5%
• Damping factor: 40
• Input sensitivity: 2.5mV (MM), 200mV (line)
• Signal to noise ratio: 70dB (MM), 90dB (line)
• Output: 200mV (line), 30mV (DIN)
• Speaker load impedance: 4Ω to 16Ω
• Dimensions: 388 x 145 x 286mm
• Weight: 6.7kg

Sony TA-2650 Stereo Integrated Amplifier (1976-78)

• Power output: 43 watts per channel into 8Ω (stereo)
• Frequency response: 20Hz to 100kHz
• Total harmonic distortion: 0.2%
• Damping factor: 25
• Input sensitivity: 2.5mV (MM), 150mV (line)
• Signal to noise ratio: 70dB (MM), 90dB (line)
• Output: 150mV (line), 30mV (DIN)
• Speaker load impedance: 4Ω to 16Ω
• Semiconductors: 2 x IC, 23 x transistors, 16 x diodes
• Dimensions: 390 x 145 x 290mm
• Weight: 8.65kg
• Year: 1976

Sony TC-186SD Stereo Cassette Deck (1976-79)

• Type: 2-head, single compact cassette deck
• Track System: 4-track, 2-channel stereo
• Tape Speed: 4.8 cm/s
• Heads: 1 x record/playback, 1 x erase
• Tape Type: type I, CrO2, FeCr
• Noise Reduction: B
• Frequency Response: 30Hz to 16kHz (FeCr tape)
• Signal to Noise Ratio: 59dB (dolby B)
• Wow and Flutter: 0.09%
• Total Harmonic Distortion: 1.7%
• Input: 60mV (line), 0.2mV (mic)
• Output: 0.435V (line)
• Dimensions: 390 x 150 x 295mm
• Weight: 6.3kg
• Year: 1979

Sony ST-2950F AM/FM Stereo Tuner (1976-78)

• Type: Mono/Stereo Tuner
• Tuning Bands: FM, MW, LW, SW
• Tuning Scale: Analogue
• FM Tuning Range: 87.5 to 108 MHz
• MW Tuning Range: 530 to 1605 kHz
• LW Tuning Range: 150 to 350 kHz
• SW Tuning Range: 6 to 18 MHz
• Sensitivity: 2uV (FM), 100uV (MW), 100uV (LW), 30uV (SW)
• Signal to Noise Ratio: 68dB (FM), 50dB (MW), 50dB (LW), 50dB (SW)
• Distortion: 0.6% (FM), 0.5% (MW), 0.5% (LW), 0.5% (SW)
• Selectivity: 50dB (FM), 50dB (MW), 50dB (LW), 45dB (SW)
• Frequency response: 40Hz to 12.5kHz (FM)
• Output: 750mV (FM)
• Dimensions: 390 x 145 x 310mm
• Weight: 6kg
• Year: 1976

De set is te beluisteren bij afhalen. Verzenden doe ik uiterst zorgvuldig.
Kijk ook eens bij mijn andere advertenties voor goede, serviced vintage audio!
