Yamaha dsp-a2/sharp cp7700 speakers

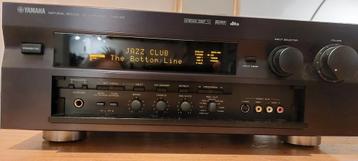

Yamaha dsp-a2

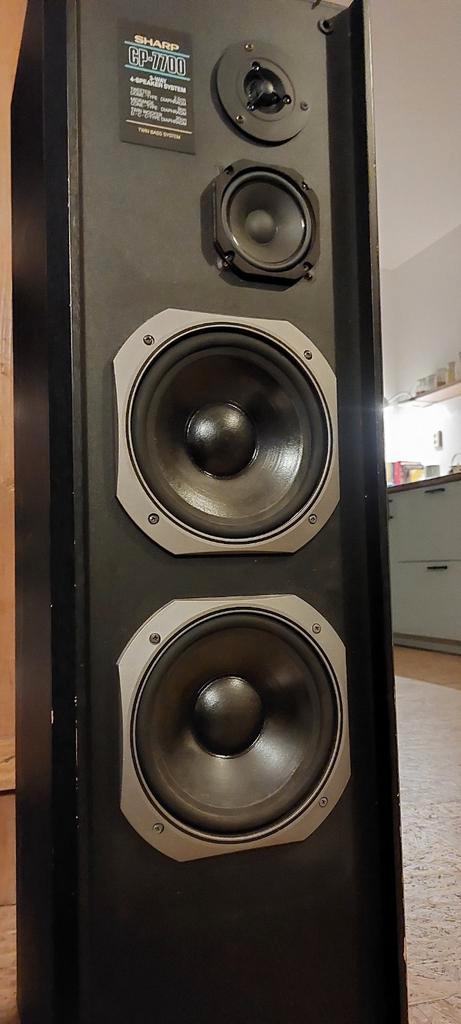

Sharp cp 7700
Retro 90ties set
Zware yamaha versterker
Zware sharp speakers
Lekker old scool en super mooi geluid .
General

Manufacturer: Yamaha
Model: DSP-A 2
Years of manufacture: 1998 - 2000
Made in: Japan
Color: Black, Titanium or Champagne
Remote control: adaptive, macro
Power consumption: 480 watts, max. 770 watts
Dimensions: 435 (473 Champagne) x 171 (171.5 Chmapagner) x 470 mm (W x H x D)
Weight: 19.5 kg (21 kg Champagne)
New price approx.: 2500 DM

Connections

Number of inputs:
Audio analog (14)
Phono MM 2.5 mV/47 KOhm
CD, Tape/MD, Tuner, DVD/LD, TV/DBS, VCR1, VCR2, Video AUX: 150 mV/47 KOhm
External Decoder: Main In, Surround In, Subwoofer In, Center In: 150 mV/47 KOhm
External Amplifier: Main In: 1 V/47 KOhm
Audio digital (6)
Coaxial: DVD/LD, CD
Optical: DVD/LD, CD, MD/Tape, TV/DBS
Video (composite and S-Video) (5)
DVD/LD, TV/DBS, VCR1, VCR2, Video Aux.
Number of outputs:
Audio analog (10)
Tape/MD, DVD/LD, TV/DBS, VCR1, VCR2: 150 mV/1 KOhm
Main Pre-Out, Center, Front Effect, Rear Surround: 1 V/1.5 KOhm
Subwoofer 4 V/1.5 KOhm
Audio digital (1)
optical: MD/Tape
Video (Composite and S-Video) (3)
VCR1, VCR2, Monitor Out
Headphones 0.5 V/440 Ohm
Loudspeaker Main A/B, Center, Surround, Front Effect
3x switched power output)

Technical Data

Audio/Video

Channels: 5.1
TV standard: NTSC/PAL
A/D converter:
D/A converter:
Output power (at distortion).
Stereo: 2x 100 Watt (8 Ohm 0,02%), 2x 160 Watt (4 Ohm DIN)
Front: 2x 100 watts (8 ohms 0.02%), 2x 160 watts (4 ohms DIN)
Center: 100 watts (8 ohms 0.02%), 160 watts (4 ohms DIN).
Rear: 2x 100 Watt (8 Ohm 0,02%), 2x 160 Watt (4 Ohm DIN) Front effect: 2x 25 Watt (8 Ohm 0,05%)

Dynamic power (with distortion factor)
Stereo: 2x 135 Watt (8 Ohm, 10%)

Front: 2x 135 Watt (8 Ohm, 10%)
Center: 135 watts (8 ohms, 10%)
Rear: 2x 135 Watt (8 Ohm, 10%)

Front effect: 2x 35 Watt (8 Ohm, 10%)
Total harmonic distortion: 0.015%
Attenuation factor: > 200
Frequency response:
Signal to Noise Ratio: > 96 dB (Phono: > 82 dB).
Stereo Channel Separation: > 60 dB @1 kHz, > 45 dB @10 kHz.
Tone control:
Bass: ± 10 dB (50 Hz), crossover frequency 350 Hz.
Treble: ± 10 dB (20 kHz), crossover frequency 3500 Hz
Loudness: Bass extension
Subsonic: No
Mute: Yes
Pure-Direct/Line-Straight: No
Time Correction:
Bass Management: Fix 90 Hz
Delay adjustment (Lip Sync): No
DSP Programs:
Concert Hall 1
Europe Hall A
Europe Hall B
Concert Hall 2

U.S.A. Hall C
Live Concert
Church
Freiburg
Royaumont
Jazz Club

The Bottom Line
Village Gate
Rock Concert
The Roxy Theatre
Arena
Entertainment
Disco
Party
Stadium
Anaheim
Bowl
Concert Video

Classical/Opera
Pop/Rock
TV Theater

Mono Movie
Variety/Sports
Movie Theater 1

Spectacle
Sci-Fi
Movie Theater 2

Adventure
General
Sound Formats

Pro Logic/Dolby Digital/DTS Surround
Normal
Enhanced
Dolby Digital
DTS
Special Features

Measuring microphone: No
Cinema DSP
Bass Extension
On-screen display
Sleep timer
Notes
Other models in the same series:

DSP-A 1
DSP-A 2
DSP-A 5
