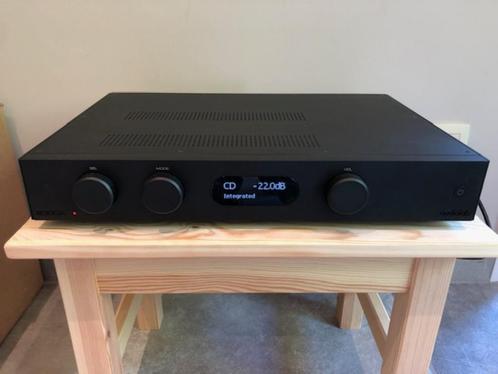

Audiolab 8300A geintegreerde versterker

niet van nieuw te onderscheiden en perfect werkend

uiteraard te beluisteren

met originele doos en bescherming

Geïntegreerde versterker (zonder DAC)Geen toonregeling2 x 75 W RMS 8 Ohm2 x 115 W RMS 4 OhmKlasse AB versterking (max 440 W)

General description Integrated AmplifierDesign philosophy and core technology Dual Mono Power Amp DesignDisplay OLED 128x64 pixels 2.7"Controls Logarithmic Ladder Volume DesignFinish Fine Textured Aluminium (Black / Silver)Standby Features Yes12V Trigger YesPhono Yes (MM/MC)Balanced XLR Input Yes

Pre-amplifier SectionInputs CD, Video, Tuner, Aux 1, Aux 2, XLR (Balanced) & PhonoOutputs 2 x RCAInput sensitivity (Phono RIAA) 50K 100pFInput impedance (line inputs) 50K 100pFInput impedance (phono inputs) 47K 100pF (MM), 100R 1.5nF (MC)Output voltage 2.3V max. (< 0.02% THD)Output impedance 120ΩFrequency response (Line) +/- 0.1dB (10Hz - 20kHz)+/- 3.0dB (1Hz - 100kHz)Frequency response (Phono RIAA) +/- 1.0dB (20Hz - 20kHz)Channel Imbalance < 0.2dB (10Hz - 20kHz)Total harmonic distortion (THD) Line 107dB>109dB(A-weighted)Signal-to-noise ratio Phono (MM) > 73dB> 78dB(A-weighted)Signal-to-noise ratio Phono (MC) > 68dB> 73dB(A-weighted)Crosstalk < 80dB (L-> R & R->L @10kHz)

Power amplifier SectionGain 29dB (20Hz-20kHz)Input Sensitivity 840mV (Power Out = 70W into 8Ω)Input impedance 15K 100pFRated max power output THD < 1% 2 x 75W RMS (8Ω) , 2 x 115W (4Ω)(Vmains = 230V , THD < 1%)Peak output current +/- 15AFrequency response +/- 0.1dB (10Hz – 20kHz)+/- 3.0dB (1Hz – 100kHz)Channel Imbalance < 0.2dB (10Hz – 20kHz)Total harmonic distortion (THD) 107dB (BW = 20 – 20kHz )>109dB(A-weighted BW = 20 – 20kHz)Damping factor >100 (8Ω Load @ 1kHz)Inputs 1 x RCAOutputs Speaker Binding Post TerminalsDimensions 80 x 444 x 330.3mmNet weight 7.8kg
