Super mooie vintage set. Compacte set. Mint conditie.
Komt uit collectie, geen mankementen, 100% in orde.

Alle apparaten uit mijn verkoop zijn altijd nagekeken, geserviced en indien benodigd hersteld.

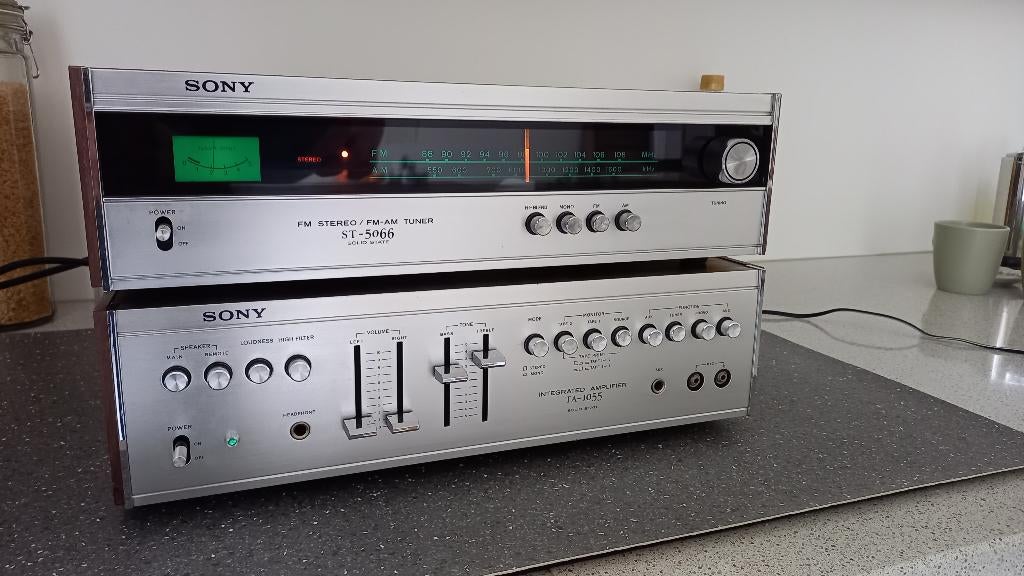

Sony TA-1055 Integrated Stereo Amplifier (1972-74)

• Power output: 23 watts per channel into 8Ω (stereo)
• Frequency response: 10Hz to 60kHz
• Total harmonic distortion: 0.5%
• Damping factor: 22
• Input sensitivity: 2mV (mic), 2mV (MM), 250mV (line)
• Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
• Output: 250mV (line), 30mV (DIN)
• Speaker load impedance: 4Ω to 16Ω
• Semiconductors: 19 x transistors, 8 x diodes, 1 x IC
• Dimensions: 16-1/8 x 4-3/4 x 11-1/8 inches
• Weight: 6.1kg

Sony ST-5066 tuner (1973)

• Type: FM/AM Tuner
• Circuit system: Superheterodyne system
• Antenna terminal: 300 Ω Balanced / 75 Ω Unbalanced
• Receiving frequency: 75 mhz to 90 mhz
• Intermediate frequency: 10.7MHz
• Practical sensitivity: 2.2 μ V (IHF)
• Sensitivity1.7 μ V (S/N = 30 db)
• Signal-to-noise ratio: 68dB
• Capture ratio: 1.5dB
• Selectivity: 55dB(IHF)
• Image interference ratio: 45dB
• IF interference ratio: 95dB
• Spurious interference ratio: 75dB
• AM suppression ratio45dB(IHF)
• Frequency characteristic: 30 Hz to 15 kHz, + 1-3 dB
• Distortion factor Mono : 0.5% at 400 Hz with 100% modulation/Stereo : 0.8% at 400 Hz, 100% modulation
• FM stereo separation 35 dB or More (400 Hz)
• Output Voltage / Impedance(400 Hz at 100% modulation): High : 1.5V/3.3k ΩNormal : 0.75V/4.5k Ω
• Power consumption: 18W
• External dimensions: Width 416x Height 120x Depth 284 mm
• Weight 4.8kg

Is te beluisteren bij afhalen. Verzenden doe ik uiterst zorgvuldig.
Kijk ook eens bij mijn andere advertenties voor goede, serviced vintage audio!

• AMPLIFIER • PHONO • AUX • VINTAGE •
