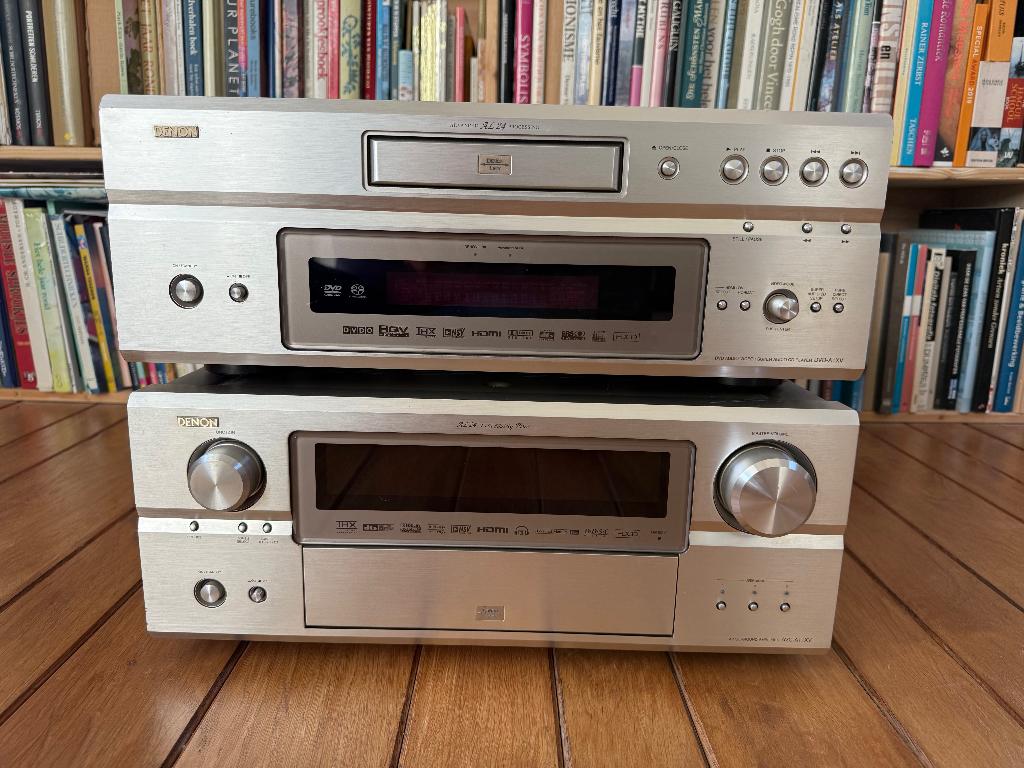

Schitterende High End Set van Denon. Zelden samen aangeboden

Denon AVC-A11XV

General
Manufacturer: DenonModel: AVC-A11XVYear of manufacture: from 06/2005Color: ChampagneDimensions: 434 x 178 x 500 mm (WxHxD).Weight: 23,6 kgOriginal price approx.: 3499 €

Connections
Digital inputs (optical/coaxial): 5 (incl. 1xFront) / 3Digital outputs (optical/coaxial): 3 / -DENON LINK (3rd, incl. SACD)IEEE1394 (iLInk) input (digital audio): 2Phono input (MM)Audio inputs: 12 (incl. phono and front) all inputs can be adjusted in input sensitivity by ± 12dBAudio outputs: 4Multi-channel input (100 kHz, DVD-Audio/SACD compatible): 8-channelPreamplifier outputs: L/C/R/SL/SR/SBL/SBR/Sub, Zone 2: L/R, Zone 3: L/RVideo Inputs (Composite/S-Video): 8 (incl. 1xFront) / 8 (incl. 1xFront)Video outputs (composite/S-video): 3+monitor / 3+monitorVideo inputs component: 3, bandwidth: 5 Hz-100 MHzVideo Outputs Component: 2Inputs HDMI / DVI-D: 3 / 1 (HDMI 1.1 with 6ch DVD-Audio support)Outputs HDMI: 1Front AV Input: Audio (L/R), Video (Composite/S-Video), Digital (Optical)Gold-plated connection terminalsPower jack (switched): 1+12 trigger output: 3 (3.5 mm jack) differentiable by zone/source/surround modeIEC socket for power supplyHeadphone output (6.3 mm jack)Ethernet network connection

Specifications
Power amplifier:

• Power amplifier 7-channel power amplifier
• Power: 7 x 195 W; 6 Ohm, 1kHz, 0.7% Distortion
• THX certified: THX Ultra 2
• power amplifier construction: discrete, High Current Transistor
• Sophisticated aluminum profile heat sink (sound-optimized, no annoying fan)
• Bandwidth: 10 Hz - 100 kHz

power supply:

• Ring core transformer (for power amplifier and driver).
• EI transformer with shield winding (x2 for audio/video stages, plus one additional transformer)
• Double rectifier in parallel connection

Power supply:

• Ring core transformer (for power stages and drivers).

EI transformer with shield winding (x2 for audio/video stages, plus one additional transformer)

• Double rectifier in parallel circuit

DSP:

• DSP: 3 x 32-bit advanced floating point DSP, Texas Instruments TMS320DA610.
• ALPHA Processor: AL24 Processing Plus for all channels

Cinema Equalizer DSP Programs: 10

• Multi-channel stereo: 5/6/7-channel stereo

Digital Section:

• D.D.S.C. Circuitry
• D/A converter: 24 bit / 192 kHz (Burr Brown PCM1791A x4), differential arrangement
• A/D Converter: 24 Bit / 192 kHz (Burr Brown PCM1804)
• Digital Interface Receiver (DIR): 24 bit / 192 kHz

Denon DVD-A1XV SACD / DVD-Audio / DVD-speler

Specifications:

Signal system: NTSC/PAL
Suitable discs: DVD-Audio, DVD-Video, Super Audio CD, CD-DA, Video CD
Video outputs: S-Video, component video, HDMI, DVI-D, RGB
Audio outputs: Optical and coaxial digital outputs, 2-channel and multi-channel analog outputs
Frequency response: 2 Hz to 100 kHz (depending on format)
Signal-to-noise ratio: 125 dB
Total harmonic distortion: 0.0008%
Dimensions: 434 x 170 x 432 mm
Weight: 19 kg
Power consumption: 80 W

Inclusief:

2x Netstroom kabel
1x Originele DENON LINK UTP kabel
1x Originele Denon Afstandbediening voor DVD-A1XV

Vraagprijs €850 of een passend bod

Verzenden is in principe mogelijk maar gelet op het gewicht (26,3 + 19Kg) kostbaar en dus niet aanbevolen.

Bij ophalen is beluisteren en testen geen probleem.

De versterker heeft recent nog onderhoud gehad bij audiospecialist in Dordrecht. Van de versterker ontbreekt wel de afstandbediening. Ik gebruikte een universele Logitech Harmony One.

Bij de DVD-speler zit een vervangende ab van Denon waarvan het batterijklepje ontbreekt. Deze is wel volledig functioneel voor de speler.
