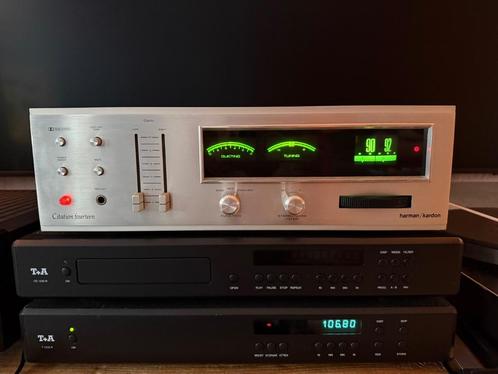

Harman Kardon Citation Fourteen

Absolute High-end tuner uit 1973 volledig hand gebouwd ,13 kg zware top kwaiteit, alle lampen werken,  super goede ontvangst en verbluffend stille stereo weergave !  hier ter plekke te testen/horen op high-end installatie
Citation Fourteen (1973-77):
On-board Dolby B noise reduction.
Five-gang tuning capacitor
Ratio detector
Large black sealed "Nine-Pole LC Toroidal Linear Phase IF Filter" made by Filtech
Front panel features:

Switch for internal Dolby NR adapter
400 Hz reference tone at level equivalent to 50% modulation
Muting switch
1/4" stereo phone plug receptacle for tape out
L and R gain control sliders
3-position Mono/Auto/Stereo Only switch
Switch for two levels of stereo noise filtering
Large center tune and quieting meters
Horizontal drum tuning dial scale with very large numbers
Unusual green-colored backlit displays for meters and dial scale* Rear panel features:
Fixed and Variable audio outputs
X and Y oscilloscope outputs
Composite signal output for external 4-channel adapter
75- and 300-ohm screw antenna terminals
75-ohm antenna coax F-connector
Switched AC convenience outlet
Specifications:

IHF Usable Sensitivity: 2.0 µV
Selectivity: 60 dB
Limiter Saturation: > 2.0 µV @ +/- 75 kHz (-1 dB)
THD @ 1 kHz: mono: 0.25%, stereo: 0.35%
Signal to Noise ratio: -70 dB minimum
Image rejection: < -100 dB
Fundamental Plus 1/2 IF: > -100 dB
IF Rejection: < -100 dB
AM Rejection: 60 dB minimum
Capture Ratio: > 2.0 dB
SCA Rejection: Inaudible
Pilot Signal Rejection: < 50 dB
Subcarrier Suppression: < 400 Hz, -13.7 dB @ 10 kHz, Maximum error: +/- 0.5 dB
